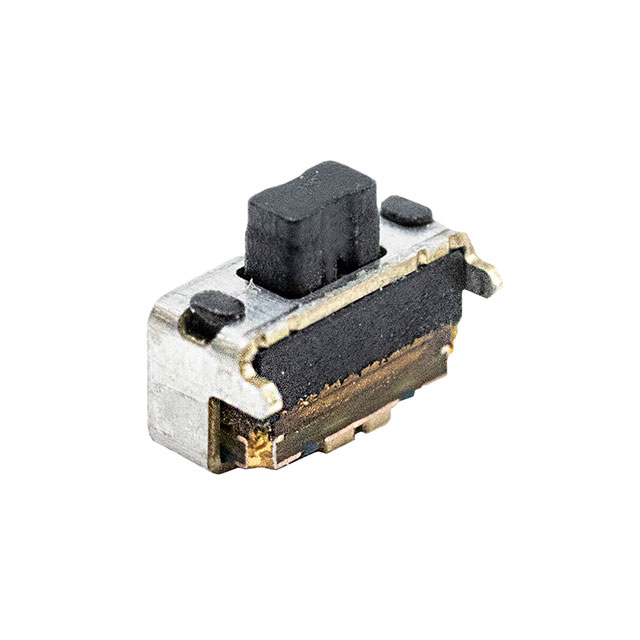

TL6340AF160Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.02A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.02A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL6340AF160Q

Actuator Length, Right Angle [x]	2.9 mm
Actuator Orientation	Side Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	12 VDC, 0.02 A
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	3.85 mm
Outline [y]	1.95 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	SMD (SMT) Tab

SWITCH TACTILE SPST-NO 0.02A 12V

Part	Contact Rating @ Voltage	Outline [x]	Outline [y]	Ingress Protection	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Circuit	Switch Function	Actuator Orientation	Switch Travel	Actuator Length, Right Angle [x]	Illumination	Mounting Type
E-Switch TL6340AF160Q	0.02 A, 12 VDC	3.85 mm	1.95 mm	IP67 - Dust Tight, Waterproof	SMD (SMT) Tab	Rectangular Button	85 °C	-40 °C	200000 Cycles	SPST-NO	Off-Mom	Side Actuated	0.2 mm	2.9 mm	Non-Illuminated	Surface Mount, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
