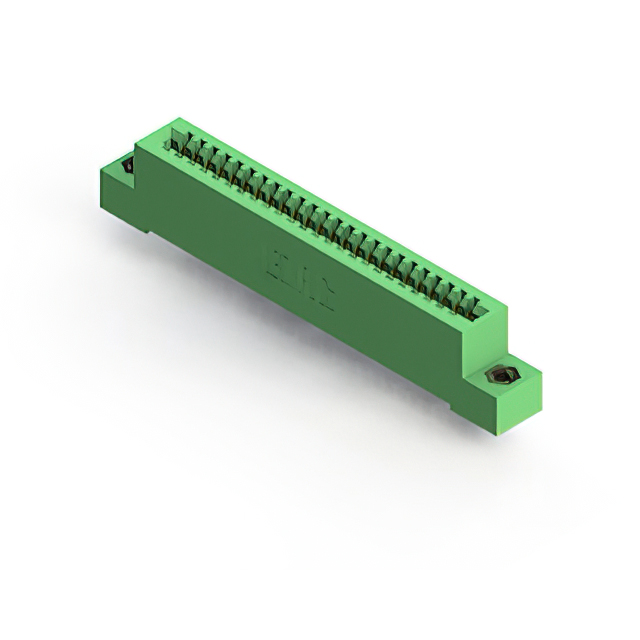

342-024-544-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 24POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-024-544-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 24POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-024-544-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
342-024 Series
...
| Part | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Number of Rows | Read Out | Color | Termination | Gender | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Contact Type | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | Dual | Green | Solder | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 12 | Cantilever | 2 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Gold | 24 | -40 °C | 105 ░C | Polyester Thermoplastic | Copper Alloy | |
EDAC Inc. | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | Dual | Green | Solder Eyelet(s) | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 12 | Cantilever | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 24 | -40 °C | 105 ░C | Polyester Thermoplastic | Copper Alloy | Card Extender | ||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | Dual | Green | Solder | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 12 | Cantilever | 2 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Gold | 24 | -40 °C | 105 ░C | Polyester Thermoplastic | Copper Alloy | |
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 1 | Single | Green | Wire Wrap | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 24 | Cantilever | 1 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Gold | 24 | -40 °C | 105 ░C | Polyester Thermoplastic | Copper Alloy | |
EDAC Inc. | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 1 | Single | Green | Solder Wire Wrap | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 24 | Cantilever | 1 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Gold | 24 | -40 °C | 105 ░C | Polyester Thermoplastic | Copper Alloy | |
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 1 | Single | Green | Wire Wrap | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 24 | Cantilever | 1 | Flush Mount M3 Threaded Insert Top Opening | Gold | 24 | -40 °C | 105 ░C | Polyester Thermoplastic | Copper Alloy | |||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 1 | Single | Green | Wire Wrap | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 24 | Cantilever | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 24 | -40 °C | 105 ░C | Polyester Thermoplastic | Copper Alloy | |||
EDAC Inc. | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | Dual | Green | Solder | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 12 | Cantilever | 2 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | 24 | -40 °C | 105 ░C | Polyester Thermoplastic | Copper Alloy | Card Extender |
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | Dual | Green | Wire Wrap | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 12 | Cantilever | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 24 | -40 °C | 105 ░C | Polyester Thermoplastic | Copper Alloy | |||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | Dual | Green | Solder | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 12 | Cantilever | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 24 | -40 °C | 105 ░C | Polyester Thermoplastic | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.13 | |
Description
General part information
342-024 Series
24 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
