15335338AA350
ActiveWürth Elektronik

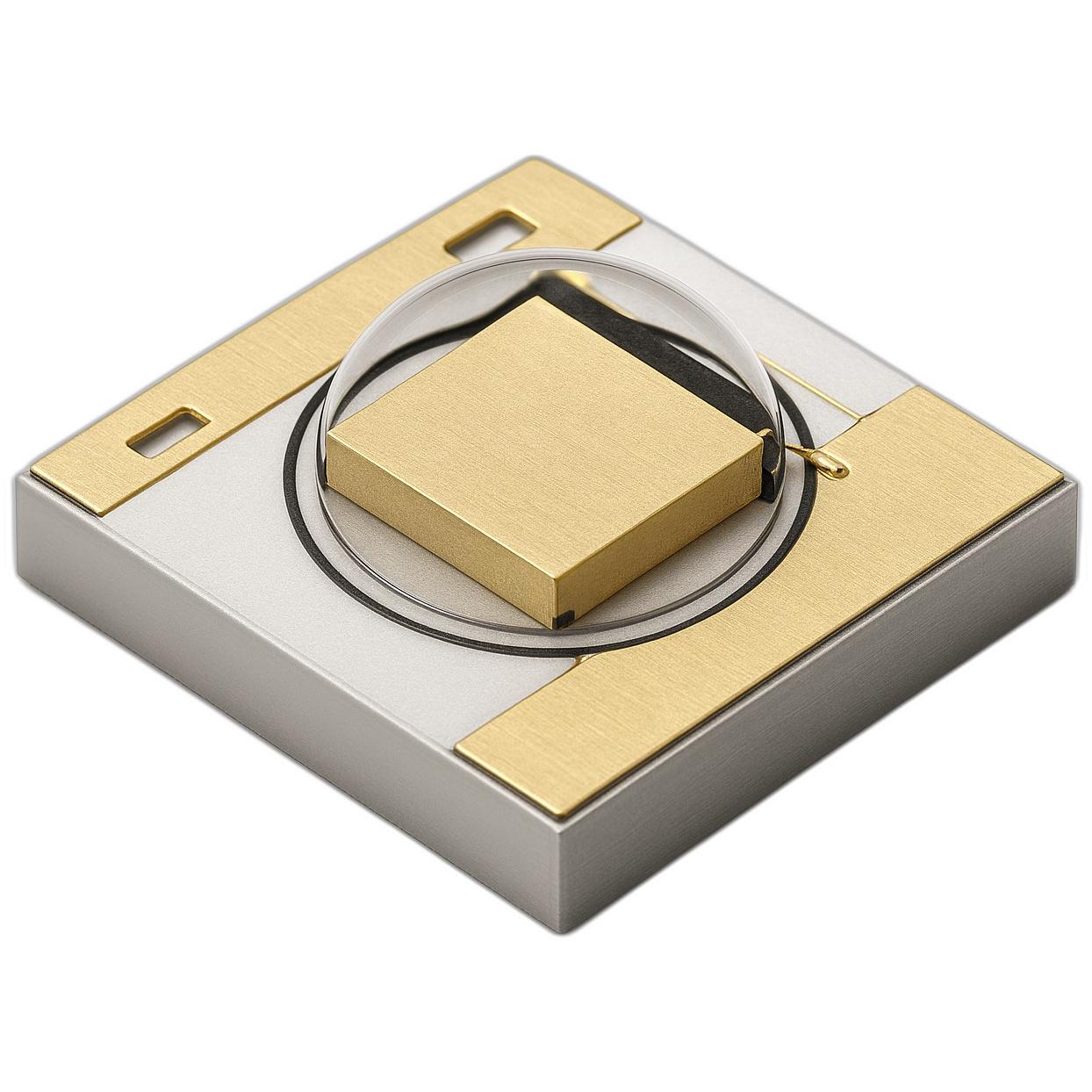

SINGLE COLOR LEDS WL-SUMW SMD UV WATERCLR 3535 385NM
15335338AA350
ActiveWürth Elektronik
SINGLE COLOR LEDS WL-SUMW SMD UV WATERCLR 3535 385NM
Description
General part information
WL-SUMW Series
SINGLE COLOR LEDS WL-SUMW SMD UV WATERCLR 3535 385NM
Technical Specifications
Parameters and characteristics for this part
| Specification | 15335338AA350 |
|---|---|
| Current - DC Forward (If) (Max) | 800 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Type | Ultraviolet (UV) |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 3.5 V |
| Wavelength | 385 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
