SSM-103-T-DH-TR

Active

Samtec Inc.

CONN RCPT 6POS 0.1 TIN SMD R/A

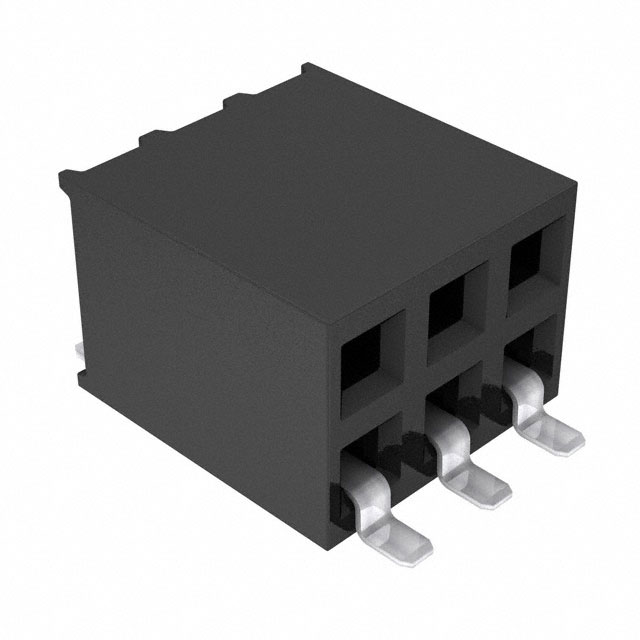

SSM-103-T-DH-TR

Active

Samtec Inc.

CONN RCPT 6POS 0.1 TIN SMD R/A

Description Specifications Series Pricing CAD Documents

Description

General part information

SSM-103 Series

6 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Tin

Technical Specifications

Parameters and characteristics for this part

Specification	SSM-103-T-DH-TR

Connector Type	Receptacle
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Per Contact)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.225 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Right Angle, Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Style	Board, Board or Cable
Termination	Solder
Voltage Rating (AC)	405 VAC
Voltage Rating (DC)	572 VDC

SSM-103 Series

...

Part	Style	Current Rating (Per Contact)	Fastening Type	Insulation Height	Mounting Type	Number of Positions	Contact Finish - Post	Connector Type	Contact Finish Thickness - Mating	Contact Type	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating (AC)	Voltage Rating (DC)	Pitch - Mating	Number of Positions Loaded	Termination	Contact Finish - Mating	Insulation Color	Contact Material	Insulation Material	Contact Shape	Row Spacing - Mating	Features
Samtec Inc. SSM-103-L-SV-TR	Board Board or Cable	5.2 A	Push-Pull	0.29 in	Surface Mount	3	Tin	Pass Through Receptacle	10 µin	Female Socket	1	125 °C	-55 °C	405 VAC	572 VDC	0.1 in	All	Solder	Gold	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. SSM-103-S-DV-K-TR	Board Board or Cable	5.2 A	Push-Pull	0.29 in	Surface Mount	6	Tin	Pass Through Receptacle	30 µin	Female Socket	2	125 °C	-55 °C	405 VAC	572 VDC	0.1 in	All	Solder	Gold	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square	0.1 in	Pick and Place
Samtec Inc. SSM-103-F-SV-BE-LC	Board Board or Cable	5.2 A	Push-Pull	0.29 in	Surface Mount	3	Tin	Bottom Entry Receptacle	3 µin	Female Socket	1	125 °C	-55 °C	405 VAC	572 VDC	0.1 in	All	Solder	Gold	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square		Board Lock
Samtec Inc. SSM-103-T-DH-TR	Board Board or Cable	5.2 A	Push-Pull	0.225 in	Right Angle Surface Mount	6	Tin	Receptacle		Female Socket	2	125 °C	-55 °C	405 VAC	572 VDC	0.1 in	All	Solder	Tin	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square	0.1 in
Samtec Inc. SSM-103-L-SV	Board Board or Cable	5.2 A	Push-Pull	0.29 in	Surface Mount	3	Tin	Pass Through Receptacle	10 µin	Female Socket	1	125 °C	-55 °C	405 VAC	572 VDC	0.1 in	All	Solder	Gold	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. SSM-103-L-DV-BE-LC-K-TR	Board Board or Cable	5.2 A	Push-Pull	0.29 in	Surface Mount	6	Tin	Bottom Entry Receptacle	10 µin	Female Socket	2	125 °C	-55 °C	405 VAC	572 VDC	0.1 in	All	Solder	Gold	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square	0.1 in	Board Lock Pick and Place
Samtec Inc. SSM-103-F-DV-LC-TR	Board Board or Cable	5.2 A	Push-Pull	0.29 in	Surface Mount	6	Tin	Pass Through Receptacle	3 µin	Female Socket	2	125 °C	-55 °C	405 VAC	572 VDC	0.1 in	All	Solder	Gold	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square	0.1 in	Board Lock
Samtec Inc. SSM-103-S-DV-BE-LC-K-TR	Board Board or Cable	5.2 A	Push-Pull	0.29 in	Surface Mount	6	Tin	Bottom Entry Receptacle	30 µin	Female Socket	2	125 °C	-55 °C	405 VAC	572 VDC	0.1 in	All	Solder	Gold	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square	0.1 in	Board Lock Pick and Place
Samtec Inc. SSM-103-F-SV-P-TR	Board Board or Cable	5.2 A	Push-Pull	0.29 in	Surface Mount	3	Tin	Pass Through Receptacle	3 µin	Female Socket	1	125 °C	-55 °C	405 VAC	572 VDC	0.1 in	All	Solder	Gold	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square		Pick and Place
Samtec Inc. SSM-103-L-DV-LC-P-TR	Board Board or Cable	5.2 A	Push-Pull	0.29 in	Surface Mount	6	Tin	Pass Through Receptacle	10 µin	Female Socket	2	125 °C	-55 °C	405 VAC	572 VDC	0.1 in	All	Solder	Gold	Black	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square	0.1 in	Board Lock Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SSM-103-T-DH-TR | Datasheet
