Specification	17-110224

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Phosphor Bronze
Convert From (Adapter End)	8p8c (RJ45), Jack
Convert To (Adapter End)	Jack, 8p8c (RJ45)
Features	Circular Bayonet Coupling
Finish	Nickel Plated
Housing Material	Zinc Die Cast
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Feature	Front Side Nut
Mounting Type	Square Flange, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Ratings	Cat5e
Shell Material	Copper Alloy
Shielding	Unshielded
Type	Coupler

17-1102 Series

Part	Contact Material	Contact Finish	Operating Temperature (Min)	Operating Temperature (Max)	Housing Material	Contact Finish Thickness	Shell Material	Finish	Ratings	Mounting Feature	Convert From (Adapter End)	Convert To (Adapter End)	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Mounting Type	Features	Type	Termination	Number of Rows	Number of Ports	Connector Type	LED Color	Tab Direction	Orientation	Number of Positions	Number of Contacts
McGill Microwave Systems 17-110224	Phosphor Bronze	Gold	-40 °C	85 °C	Zinc Die Cast	50 µin	Copper Alloy	Nickel Plated	Cat5e	Front Side Nut	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Dust Tight Waterproof	IP67	Unshielded	Panel Mount Square Flange	Circular Bayonet Coupling	Coupler
McGill Microwave Systems 17-110254									Cat5e		8p8c (RJ45) Jack	8p8c (RJ45) Jack	Dust Tight Waterproof	IP67				Coupler

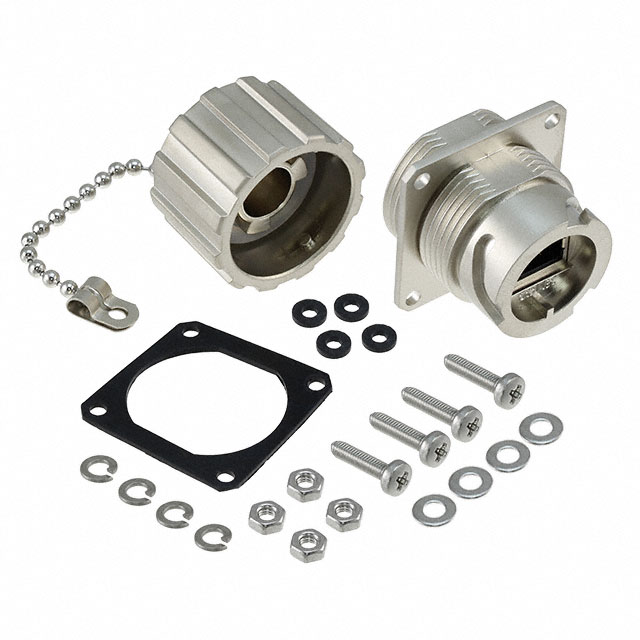

McGill Microwave Systems 17-110234	Phosphor Bronze	Gold	-40 °C	85 °C	Zinc Die Cast	50 µin	Copper Alloy	Nickel Plated		Front Side Nut	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Dust Tight Waterproof	IP67	Shielded	Panel Mount Square Flange	Cap (Cover) Circular Threaded Coupling Industrial Environments	Coupler
McGill Microwave Systems 17-110214	Phosphor Bronze	Gold	-40 °C	85 °C	Zinc Die Cast	50 µin	Copper Alloy	Nickel Plated	Cat5e	Front Side Nut	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Dust Tight Waterproof	IP67	Shielded	Panel Mount Square Flange	Circular Bayonet Coupling	Coupler
McGill Microwave Systems 17-110264	Phosphor Bronze	Gold	-40 °C	85 °C	Polyester	50 µin			Cat5e				Dust Tight Waterproof	IP67	Shielded	Bulkhead Panel Mount	Circular Bayonet Coupling		PC Board Solder	1	1	Ethernet Jack RJ45	Does Not Contain LED	User Selectable	Straight	8	8
McGill Microwave Systems 17-110204	Phosphor Bronze	Gold	-40 °C	85 °C	Nickel Plated Zinc Die Cast	50 µin			Cat5e				Dust Tight Waterproof	IP67	Shielded	Bulkhead Panel Mount	Circular Bayonet Coupling Potted		Terminal Block	1	1	Ethernet Jack RJ45	Does Not Contain LED	User Selectable	Straight	8	8
McGill Microwave Systems 17-110244	Phosphor Bronze	Gold	-40 °C	85 °C	Zinc Die Cast	50 µin	Copper Alloy	Nickel Plated		Front Side Nut	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Dust Tight Waterproof	IP67	Unshielded	Panel Mount Square Flange	Cap (Cover) Circular Bayonet Coupling Industrial Environments	Coupler
