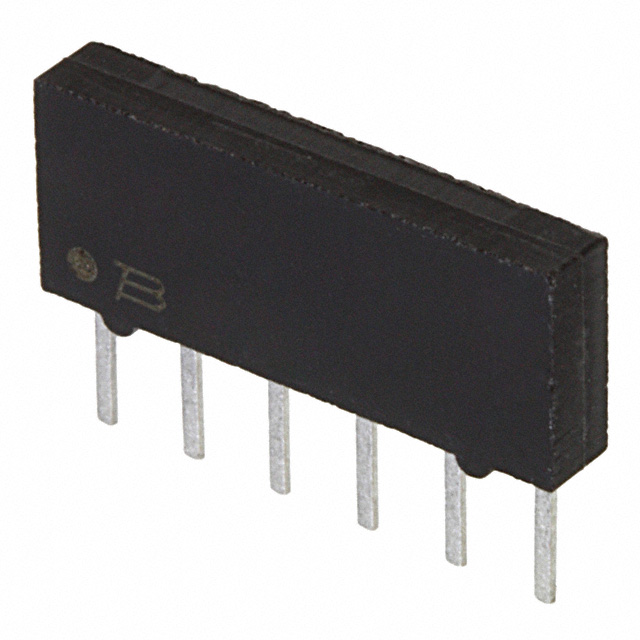

4306M-102-330LF

Active

Bourns Inc.

RES ARRAY 3 RES 33 OHM 6SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4306M-102-330LF

Active

Bourns Inc.

RES ARRAY 3 RES 33 OHM 6SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4306M-102-330LF

Circuit Type	Isolated
Height - Seated (Max)	6.35 mm
Height - Seated (Max) [Max]	0.25 in
Mounting Type	Through Hole
Number of Pins [custom]	6
Number of Resistors	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-SIP
Resistance (Ohms)	33 Ohms
Resistor-Ratio-Drift	50 ppm/°C
Size / Dimension [x]	14.83 mm
Size / Dimension [x]	0.584 in
Size / Dimension [y]	2.16 mm
Size / Dimension [y]	0.085 in
Supplier Device Package	6-SIP
Temperature Coefficient	250 ppm/°C
Tolerance	1 Ohm

4306M Series

Part	Temperature Coefficient	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Number of Resistors	Mounting Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Number of Pins [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Resistor-Ratio-Drift	Circuit Type	Power Per Element	Resistance (Ohms)	Resistance (Ohms)
Bourns Inc. 4306M-104-221/331	100 ppm/°C	6.35 mm	0.25 in	2 %	8	Through Hole	6-SIP	14.83 mm	2.16 mm	0.085 in	0.584 in	6-SIP	6	-55 °C	125 °C	50 ppm/°C	Dual Terminator	250 mW
Bourns Inc. 4306M-102-330LF	250 ppm/°C	6.35 mm	0.25 in	1 Ohm	3	Through Hole	6-SIP	14.83 mm	2.16 mm	0.085 in	0.584 in	6-SIP	6	-55 °C	125 °C	50 ppm/°C	Isolated		33 Ohms
Bourns Inc. 4306M-102-512LF	100 ppm/°C	6.35 mm	0.25 in	2 %	3	Through Hole	6-SIP	14.83 mm	2.16 mm	0.085 in	0.584 in	6-SIP	6	-55 °C	125 °C	50 ppm/°C	Isolated		5.1 kOhms
Bourns Inc. 4306M-101-103LF	100 ppm/°C	6.35 mm	0.25 in	2 %	5	Through Hole	6-SIP	14.83 mm	2.16 mm	0.085 in	0.584 in	6-SIP	6	-55 °C	125 °C	50 ppm/°C	Bussed	250 mW		10k
Bourns Inc. 4306M-102-474LF	100 ppm/°C	6.35 mm	0.25 in	2 %	3	Through Hole	6-SIP	14.83 mm	2.16 mm	0.085 in	0.584 in	6-SIP	6	-55 °C	125 °C	50 ppm/°C	Isolated			470k
Bourns Inc. 4306M-101-152LF	100 ppm/°C	6.35 mm	0.25 in	2 %	5	Through Hole	6-SIP	14.83 mm	2.16 mm	0.085 in	0.584 in	6-SIP	6	-55 °C	125 °C	50 ppm/°C	Bussed	250 mW	1.5 kOhms
Bourns Inc. 4306M-101-472LF	100 ppm/°C	6.35 mm	0.25 in	2 %	5	Through Hole	6-SIP	14.83 mm	2.16 mm	0.085 in	0.584 in	6-SIP	6	-55 °C	125 °C	50 ppm/°C	Bussed	250 mW		4.7k
Bourns Inc. 4306M-101-512	100 ppm/°C	6.35 mm	0.25 in	2 %	5	Through Hole	6-SIP	14.83 mm	2.16 mm	0.085 in	0.584 in	6-SIP	6	-55 °C	125 °C	50 ppm/°C	Bussed	250 mW	5.1 kOhms
Bourns Inc. 4306M-102-512	100 ppm/°C	6.35 mm	0.25 in	2 %	3	Through Hole	6-SIP	14.83 mm	2.16 mm	0.085 in	0.584 in	6-SIP	6	-55 °C	125 °C	50 ppm/°C	Isolated		5.1 kOhms
Bourns Inc. 4306M-102-393LF	100 ppm/°C	6.35 mm	0.25 in	2 %	3	Through Hole	6-SIP	14.83 mm	2.16 mm	0.085 in	0.584 in	6-SIP	6	-55 °C	125 °C	50 ppm/°C	Isolated			39k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 0.70

Description

General part information

4306M Series

33 Ohm ±1Ohm 400mW Power Per Element Isolated 3 Resistor Network/Array ±250ppm/°C 6-SIP
