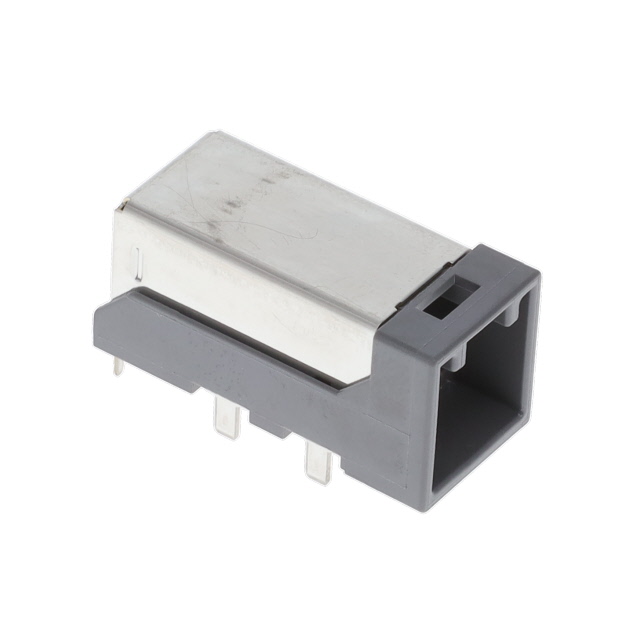

MX49004HQ1

Active

JAE Electronics

CONN HEADER R/A 4POS 2MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER R/A 4POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX49004HQ1

Applications	Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Post [x]	2.2 mm
Contact Length - Post [x]	0.087 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Lock, Board Guide, Shielded
Insulation Height [z]	12.6 mm
Insulation Height [z]	0.496 in
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Applications	Fastening Type	Insulation Height [z]	Insulation Height [z]	Connector Type	Termination	Contact Material	Style	Features	Number of Rows	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Mounting Type	Number of Positions	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Contact Shape	Contact Finish - Mating	Insulation Material	Insulation Color
JAE Electronics MX49004HQ1	Automotive	Latch Holder	12.6 mm	0.496 in	Header	Solder	Brass	Board to Cable/Wire	Board Guide Board Lock Shielded	2	Shrouded - 4 Wall	0.079 in	2 mm	All	Through Hole Right Angle	4	Tin	85 °C	-40 °C	2.2 mm	0.087 in	Male Pin	Square	Gold
JAE Electronics MX49004HQ4		Latch Holder	12.6 mm	0.496 in	Header	Solder	Brass	Board to Cable/Wire	Board Guide Shielded	2	Shrouded - 4 Wall	0.079 in	2 mm	All	Surface Mount Right Angle Through Hole	4	Tin	85 °C	-40 °C			Male Pin		Gold	Polyphenylene Sulfide (PPS) Glass Filled	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)
