C146 10R006 804 1

Active

Amphenol Tuchel Industrial

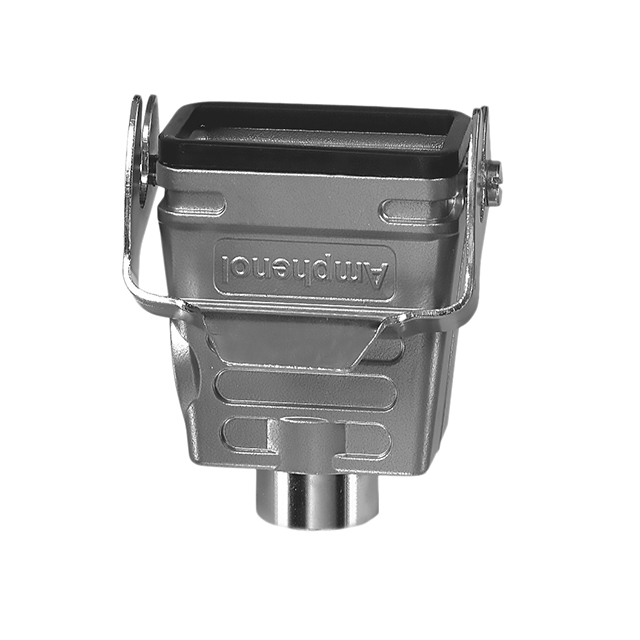

CONN HOOD CPLNG BOTTOM SZE6 M20

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD CPLNG BOTTOM SZE6 M20

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10R006 804 1

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood Top
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	52 mm
Size / Dimension [z]	2.047 in
Style	Bottom Entry
Thread Size	M20

Part	Style	Features	Housing Material	Thread Size	Ingress Protection	Connector Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location
Amphenol Tuchel Industrial C146 10R006 804 1	Bottom Entry	Cable to Cable	Aluminum Alloy Die Cast	M20	IP65 - Dust Tight Water Resistant	Hood - Coupling	1.693 in	52 mm	2.047 in	60 mm	2.362 in	43 mm	100 °C	-40 °C	Locking Clip (1) on Hood Top
Amphenol Tuchel Industrial C146 10R006 556 8	Side Entry		Aluminum Die Cast	M25	IP65 - Dust Tight Water Resistant	Hood	1.693 in	70 mm	2.756 in	60 mm	2.362 in	43 mm	100 °C	-40 °C	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10R006 507 1	Side Entry		Aluminum Alloy Die Cast	M25	IP65 - Dust Tight Water Resistant	Hood	1.693 in	51 mm	2.008 in	60 mm	2.362 in	43 mm	100 °C	-40 °C	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10R006 506 1	Side Entry		Aluminum Alloy Die Cast	M20	IP65 - Dust Tight Water Resistant	Hood	1.693 in	51 mm	2.008 in	60 mm	2.362 in	43 mm	100 °C	-40 °C	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	45	$ 24.66

General part information

Hood - Coupling Connector Bottom Entry M20 E6 IP65 - Dust Tight, Water Resistant
