AD9235BCP-65
ActiveAnalog Devices Inc

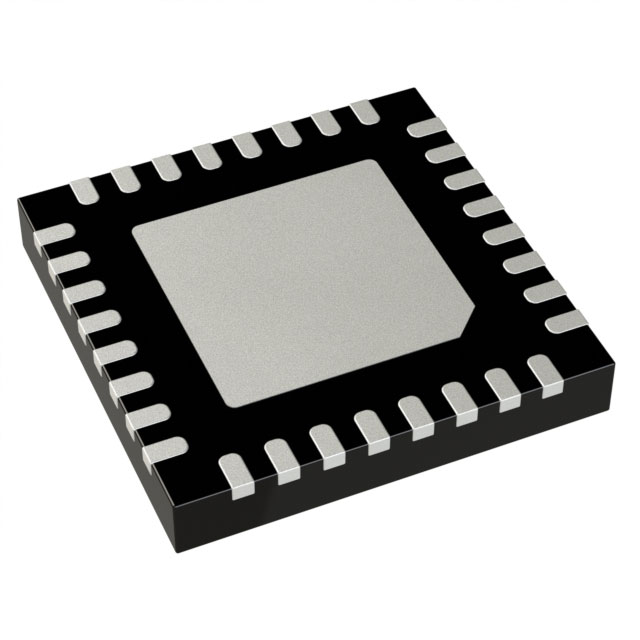

IC ADC 12BIT 65MSPS 32-LFCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AD9235BCP-65
ActiveAnalog Devices Inc
IC ADC 12BIT 65MSPS 32-LFCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AD9235BCP-65 | AD9235 Series |
|---|---|---|
| Architecture | - | Pipelined |
| Configuration | - | S/H-ADC |
| Data Interface | Parallel | Parallel |
| Input Type | - | Differential, Single Ended |
| Mounting Type | Surface Mount | Surface Mount |
| Number of A/D Converters | - | 1 |
| Number of Bits | 12 | 12 |
| Number of Inputs | - | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | CSP, 32-VFQFN Exposed Pad | 28-TSSOP, CSP, 32-VFQFN Exposed Pad, 32-WFQFN Exposed Pad, CSP |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.173 in |
| Ratio - S/H:ADC | - | 1:1 |
| Reference Type | - | Internal, External |
| Sampling Rate (Per Second) | 65 M | 40 - 65 M |
| Supplier Device Package | 32-LFCSP-VQ (5x5) | 28-TSSOP, 32-LFCSP-VQ (5x5), 32-LFCSP-WQ (5x5) |
| Voltage - Supply, Analog | - | 2.7 V |
| Voltage - Supply, Analog | - | 3.6 V |
| Voltage - Supply, Digital | - | 3.6 V |
| Voltage - Supply, Digital | - | 2.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 15 | $ 20.39 | |
AD9235 Series
12-BIT, 20/40/65 MSPS, 3 V ANALOG-TO-DIGITAL CONVERTER
| Part | Configuration | Sampling Rate (Per Second) | Data Interface | Supplier Device Package | Ratio - S/H:ADC | Architecture | Number of Inputs | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Input Type | Number of Bits | Package / Case | Package / Case | Package / Case | Number of A/D Converters | Reference Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc AD9235BRUZRL7-40 | S/H-ADC | 40 M | Parallel | 28-TSSOP | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 28-TSSOP | 4.4 mm | 0.173 in | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V |
Analog Devices Inc AD9235BRURL7-20 | S/H-ADC | Parallel | 28-TSSOP | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 28-TSSOP | 4.4 mm | 0.173 in | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V | |
Analog Devices Inc AD9235BRURL7-65 | S/H-ADC | 65 M | Parallel | 28-TSSOP | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 28-TSSOP | 4.4 mm | 0.173 in | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V |
Analog Devices Inc AD9235BCP-65 | 65 M | Parallel | 32-LFCSP-VQ (5x5) | 12 | 32-VFQFN Exposed Pad, CSP | Surface Mount | -40 °C | 85 °C | |||||||||||||
Analog Devices Inc AD9235BRURL7-40 | S/H-ADC | 40 M | Parallel | 28-TSSOP | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 28-TSSOP | 4.4 mm | 0.173 in | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V |
Analog Devices Inc AD9235BRU-65 | S/H-ADC | 65 M | Parallel | 28-TSSOP | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 28-TSSOP | 4.4 mm | 0.173 in | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V |
Analog Devices Inc AD9235BRUZ-65 | S/H-ADC | 65 M | Parallel | 28-TSSOP | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 28-TSSOP | 4.4 mm | 0.173 in | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V |
Analog Devices Inc AD9235BCPZRL7-40 | S/H-ADC | 40 M | Parallel | 32-LFCSP-WQ (5x5) | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 32-WFQFN Exposed Pad, CSP | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V | ||
Analog Devices Inc AD9235BCPZRL7-20 | S/H-ADC | Parallel | 32-LFCSP-WQ (5x5) | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 32-WFQFN Exposed Pad, CSP | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V | |||
Analog Devices Inc AD9235BCPZ-65 | S/H-ADC | 65 M | Parallel | 32-LFCSP-VQ (5x5) | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 32-VFQFN Exposed Pad, CSP | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V | ||
Analog Devices Inc AD9235BRUZ-40 | S/H-ADC | 40 M | Parallel | 28-TSSOP | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 28-TSSOP | 4.4 mm | 0.173 in | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V |
Analog Devices Inc AD9235BCPZ-40 | S/H-ADC | 40 M | Parallel | 32-LFCSP-VQ (5x5) | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 32-VFQFN Exposed Pad, CSP | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V | ||
Analog Devices Inc AD9235BRU-40 | S/H-ADC | 40 M | Parallel | 28-TSSOP | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 28-TSSOP | 4.4 mm | 0.173 in | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V |
Analog Devices Inc AD9235BRU-20 | S/H-ADC | Parallel | 28-TSSOP | 1:1 | Pipelined | 1 | 2.7 V | 3.6 V | Differential, Single Ended | 12 | 28-TSSOP | 4.4 mm | 0.173 in | 1 | External, Internal | Surface Mount | -40 °C | 85 °C | 3.6 V | 2.25 V |
Description
General part information
AD9235 Series
12 Bit Analog to Digital Converter Input 3 32-LFCSP-VQ (5x5)
