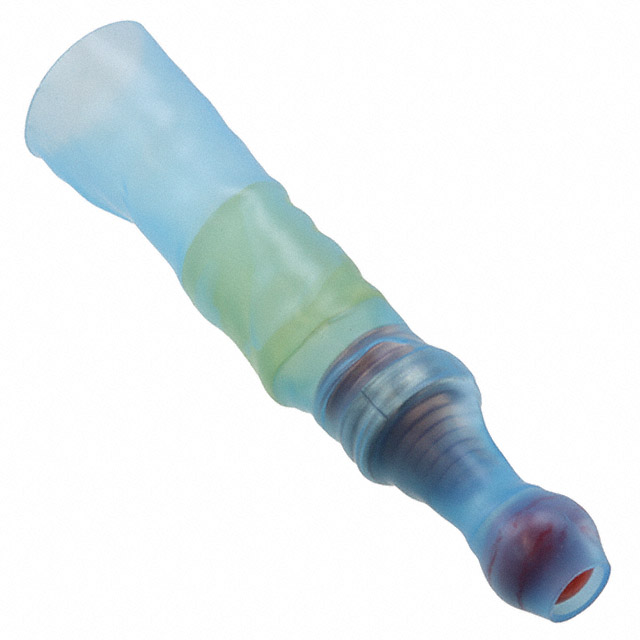

SGRS-2

Active

TE Connectivity Aerospace, Defense and Marine

CONN WIRE CAP 4000-8000 CMA TWST

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN WIRE CAP 4000-8000 CMA TWST

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SGRS-2	SGRS Series

Color	Blue, Red Stripe	Blue, Blue Stripe, Red Stripe
Insulation	Fully Insulated Heat Shrink	Fully Insulated Heat Shrink
Number of Wire Entries [custom]	1	1
Terminal Type	Twist On Wire Cap	Twist On Wire Cap
Termination	Solder	Solder
Wire Gauge [Max]	8000 CMA	8000 - 16000 CMA
Wire Gauge [Min]	4000 CMA	4000 - 7000 CMA

CONN WIRE CAP 7000-16000 CMA

Part	Terminal Type	Insulation	Number of Wire Entries [custom]	Color	Termination	Wire Gauge [Min]	Wire Gauge [Max]
TE Connectivity Aerospace, Defense and Marine SGRS-3	Twist On Wire Cap	Fully Insulated Heat Shrink	1	Blue, Blue Stripe	Solder	7000 CMA	16000 CMA
TE Connectivity Aerospace, Defense and Marine SGRS-2	Twist On Wire Cap	Fully Insulated Heat Shrink	1	Blue, Red Stripe	Solder	4000 CMA	8000 CMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Twist On Wire Cap Connector Solder 4000-8000 CMA Blue, Red Stripe
