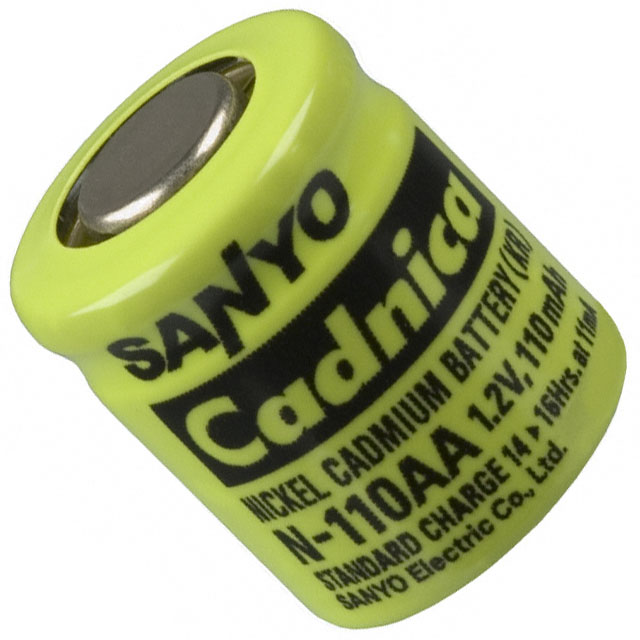

N-110AA
ObsoletePanasonic Industrial Automation Sales
BATTERY NICAD 1.2V 110MAH 1/3AA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N-110AA
ObsoletePanasonic Industrial Automation Sales
BATTERY NICAD 1.2V 110MAH 1/3AA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N-110AA |
|---|---|
| Battery Cell Size | 1/3AA |
| Battery Chemistry | Nickel Cadmium |
| Capacity | 110 mAh |
| Discharge Rate | 22 mA |
| Size / Dimension [diameter] | 14.2 mm |
| Size / Dimension [diameter] | 0.56 " |
| Size / Dimension [z] | 0.67 in |
| Size / Dimension [z] | 17 mm |
| Standard Charge Time | 16 Hrs |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 1.2 V |
| Weight | 7.26 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
N-110 Series
1/3AA 1.2 V Nickel Cadmium Battery Rechargeable (Secondary) 110mAh
Documents
Technical documentation and resources
