627W2W2-224-2N2

Active

EDAC Inc.

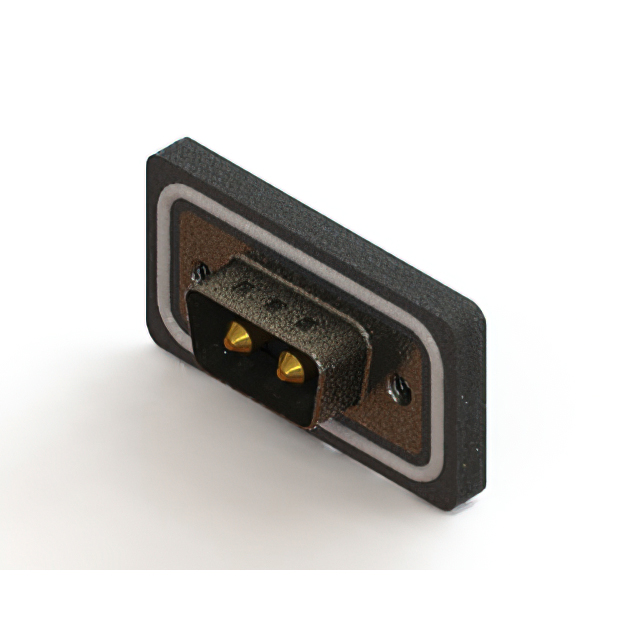

CONN D-SUB PLUG 2P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627W2W2-224-2N2

Active

EDAC Inc.

CONN D-SUB PLUG 2P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627W2W2-224-2N2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Termination	Solder
Voltage Rating	125 VDC

627W2W Series

...

Part	Termination	Flange Feature	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Number of Positions	Ingress Protection	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Shell Size, Connector Layout	Material Flammability Rating	Contact Type	Color	Current Rating (Amps)	Number of Rows	Contact Finish	Contact Material	Connector Style	Contact Finish Thickness
EDAC Inc. 627W2WK2124-1ND	Solder	Board Side (M3)	Nickel Plated Steel	0.127 µm	5 µin	Polybutylene Terephthalate (PBT) Glass Filled	2	IP67 - Dust Tight Waterproof	125 VDC	-25 °C	85 °C	Board Lock Grounding Indents Shielded	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	UL94 V-0	Power	Black	10 A	1	Gold	Copper Alloy	Combo D-Sub
EDAC Inc. 627W2W2-224-1NA	Solder	Housing/Shell (M3)	Nickel Plated Steel			Polybutylene Terephthalate (PBT) Glass Filled	2	IP67 - Dust Tight Waterproof	125 VDC	-25 °C	85 °C	Grounding Indents Shielded	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	UL94 V-0	Power	Black	10 A	1	Gold	Copper Alloy	Combo D-Sub	Flash
EDAC Inc. 627W2W2-224-2N2	Solder	Housing/Shell (4-40)	Nickel Plated Steel			Polybutylene Terephthalate (PBT) Glass Filled	2	IP67 - Dust Tight Waterproof	125 VDC	-25 °C	85 °C	Grounding Indents Shielded	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	UL94 V-0	Power	Black	20 A	1	Gold	Copper Alloy	Combo D-Sub	Flash
EDAC Inc. 627W2W2-324-3NA	Solder	Housing/Shell (M3)	Nickel Plated Steel	0.38 µm	15 µin	Polybutylene Terephthalate (PBT) Glass Filled	2	IP67 - Dust Tight Waterproof	125 VDC	-25 °C	85 °C	Grounding Indents Shielded	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	UL94 V-0	Power	Black	30 A	1	Gold	Copper Alloy	Combo D-Sub
EDAC Inc. 627W2W2-324-4N5	Solder	4-40 Board Side	Nickel Plated Steel	0.38 µm	15 µin	Polybutylene Terephthalate (PBT) Glass Filled	2	IP67 - Dust Tight Waterproof	125 VDC	-25 °C	85 °C	Board Lock Grounding Indents Shielded	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	UL94 V-0	Power	Black	40 A	1	Gold	Copper Alloy	Combo D-Sub
EDAC Inc. 627W2W2-322-4NA		Housing/Shell (M3)	Nickel Plated Steel	0.38 µm	15 µin	Polybutylene Terephthalate (PBT) Glass Filled	2	IP67 - Dust Tight Waterproof	125 VDC	-25 °C	85 °C	Grounding Indents Shielded	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	UL94 V-0	Power	Black	40 A	1	Gold	Copper Alloy	Combo D-Sub
EDAC Inc. 627W2WK2122-4NA		Housing/Shell (M3)	Nickel Plated Steel	0.127 µm	5 µin	Polybutylene Terephthalate (PBT) Glass Filled	2	IP67 - Dust Tight Waterproof	125 VDC	-25 °C	85 °C	Grounding Indents Shielded	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	UL94 V-0	Power	Black	40 A	1	Gold	Copper Alloy	Combo D-Sub
EDAC Inc. 627W2WK2224-4NA	Solder	Housing/Shell (M3)	Nickel Plated Steel			Polybutylene Terephthalate (PBT) Glass Filled	2	IP67 - Dust Tight Waterproof	125 VDC	-25 °C	85 °C	Grounding Indents Shielded	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	UL94 V-0	Power	Black	40 A	1	Gold	Copper Alloy	Combo D-Sub	Flash
EDAC Inc. 627W2W2-324-2NA	Solder	Housing/Shell (M3)	Nickel Plated Steel	0.38 µm	15 µin	Polybutylene Terephthalate (PBT) Glass Filled	2	IP67 - Dust Tight Waterproof	125 VDC	-25 °C	85 °C	Grounding Indents Shielded	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	UL94 V-0	Power	Black	20 A	1	Gold	Copper Alloy	Combo D-Sub
EDAC Inc. 627W2W2-324-1N2	Solder	Housing/Shell (4-40)	Nickel Plated Steel	0.38 µm	15 µin	Polybutylene Terephthalate (PBT) Glass Filled	2	IP67 - Dust Tight Waterproof	125 VDC	-25 °C	85 °C	Grounding Indents Shielded	Male Pins Plug	1 (DE E) 2V2 2W2 2W2C 2WK2	UL94 V-0	Power	Black	10 A	1	Gold	Copper Alloy	Combo D-Sub

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 9.98

Description

General part information

627W2W Series

2 (Power) Position D-Sub, Combo Plug, Male Pins Connector
