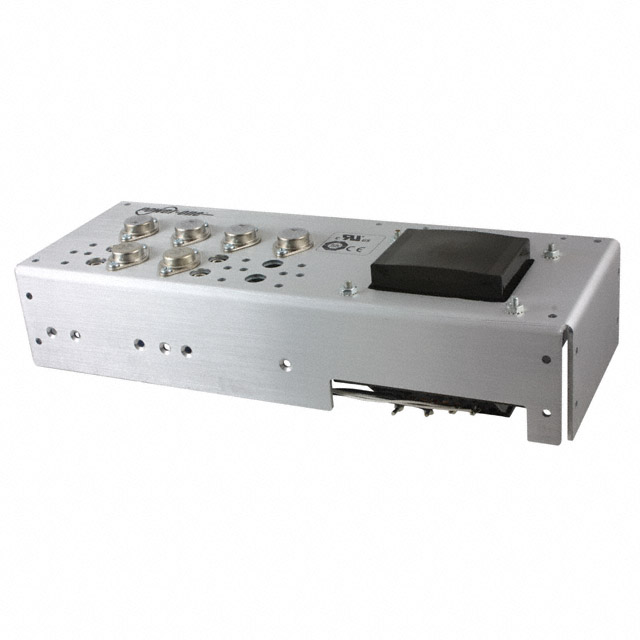

HDD15-5-AG

Active

Bel Power Solutions

AC/DC POWER SUPPLY DUAL-OUT -12V/12V 5A/5A 120W CASE E

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC POWER SUPPLY DUAL-OUT -12V/12V 5A/5A 120W CASE E

Technical Specifications

Parameters and characteristics for this part

Specification	HDD15-5-AG

Applications	ITE (Commercial)
Current - Output 1	5 A
Current - Output 2	5 A
Efficiency	55 %
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Power (Watts)	150 W
Size / Dimension [x]	14 in
Size / Dimension [x]	355.6 mm
Size / Dimension [y]	123.7 mm
Size / Dimension [y]	4.87 in
Size / Dimension [z]	3.53 "
Size / Dimension [z]	89.7 mm
Type	Linear
Voltage - Input	240 VAC, 120 VAC, 220 VAC, 230 VAC, 100 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

AC/DC POWER SUPPLY DUAL-OUT -12V/12V 5A/5A 120W CASE E

Part	Efficiency	Voltage - Output 2	Voltage - Input	Current - Output 1	Power (Watts)	Applications	Mounting Type	Type	Voltage - Isolation	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Current - Output 2	Number of Outputs
Bel Power Solutions HDD15-5-AG	55 %	-15 V	100 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC	5 A	150 W	ITE (Commercial)	Chassis Mount	Linear	3000 V	Adjustable Output, Remote Sense	123.7 mm	3.53 "	4.87 in	14 in	355.6 mm	89.7 mm	15 V	5 A	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 362.76
Digikey	Bulk	1	$ 311.08

General part information

Linear AC DC Converters 2 Output 15V -15V 100, 120, 220, 230, 240 VAC Input

Technical documentation and resources

No documents available
