FAG.2B.312.CLA

Active

LEMO

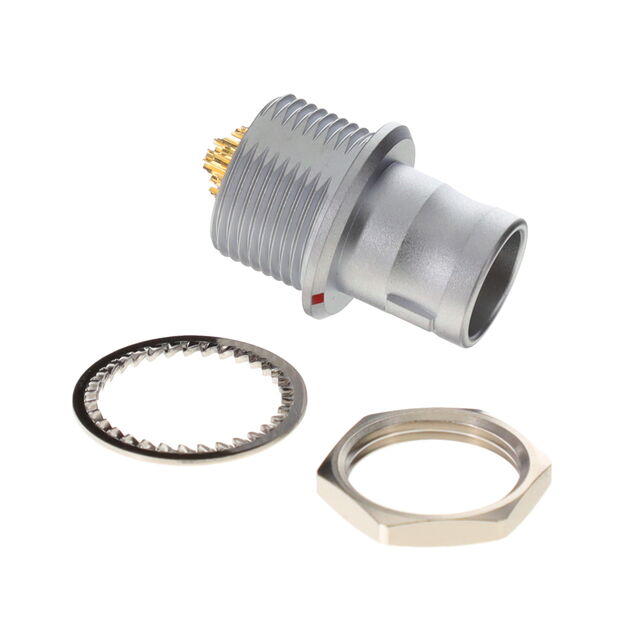

CONN PLUG MALE 12P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FAG.2B.312.CLA

Active

LEMO

CONN PLUG MALE 12P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 61.66
		10	$ 56.58
		25	$ 54.40
		50	$ 52.59
		100	$ 49.69

Description

General part information

FAG.2B Series

12 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FAG.2B.312.CLA	FAG.2B Series

Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	7 A	1.5 - 25 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	12	2 - 26
Number of Positions	-	4
Number of Positions	-	1
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	312	302 - 804
Shielding	Shielded	Shielded
Termination	-	Solder, Crimp

FAG.2B Series

CONN PLUG MALE 10P GOLD SLDR CUP

Part	Primary Material	Contact Material	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Material Flammability Rating	Shielding	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Ingress Protection	Color	Fastening Type	Insert Material	Connector Type	Mounting Feature	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Termination	Mounting Type
LEMO FAG.2B.310.CLA	Metal	Brass	Chrome	-55 °C	250 °C	G	10	Gold	8 A	UL94 V-0	Shielded	310	1 µm	39.4 µin	Brass	IP50	Silver	Push-Pull	Polyetheretherketone (PEEK)	Male Pins, Plug	Bulkhead - Rear Side Nut
LEMO FAG.2B.804.CLA1	Metal	Brass	Chrome	-55 °C	250 °C	G		Gold	7 A	UL94 V-0	Shielded	804	1 µm	39.4 µin	Brass	IP50	Silver	Push-Pull	Polyetheretherketone (PEEK)	Male Pins, Plug	Bulkhead - Rear Side Nut	4	1
LEMO FAG.2B.312.CLA	Metal	Brass	Chrome	-55 °C	250 °C	G	12	Gold	7 A	UL94 V-0	Shielded	312	1 µm	39.4 µin	Brass	IP50	Silver	Push-Pull	Polyetheretherketone (PEEK)	Male Pins, Plug	Bulkhead - Rear Side Nut
LEMO FAG.2B.332.CLA	Metal	Brass	Chrome	-55 °C	250 °C	G		Gold	1.5 A	UL94 V-0	Shielded	332	1 µm	39.4 µin	Brass	IP50	Silver	Push-Pull	Polyetheretherketone (PEEK)	Male Pins, Plug	Bulkhead - Rear Side Nut
LEMO FAG.2B.316.CLA	Metal	Brass	Chrome	-55 °C	250 °C	G		Gold	6 A	UL94 V-0	Shielded	316	1 µm	39.4 µin	Brass	IP50	Silver	Push-Pull	Polyetheretherketone (PEEK)	Male Pins, Plug	Bulkhead - Rear Side Nut			16
LEMO FAG.2B.326.CLA	Metal	Brass	Chrome	-55 °C	250 °C	G	26	Gold	2 A	UL94 V-0	Shielded	326	1 µm	39.4 µin	Brass	IP50	Silver	Push-Pull	Polyetheretherketone (PEEK)	Male Pins, Plug	Bulkhead - Rear Side Nut
LEMO FAG.2B.314.CLD	Metal	Brass	Chrome	-55 °C	250 °C	G	14	Gold	6.5 A	UL94 V-0	Shielded	314	1 µm	39.4 µin	Brass	IP50	Silver	Push-Pull	Polyetheretherketone (PEEK)	Male Pins, Plug	Bulkhead - Rear Side Nut				Solder	Panel Mount, Through Hole
LEMO FAG.2B.302.CLA	Metal	Brass	Chrome	-55 °C	250 °C	G	2	Gold	25 A	UL94 V-0	Shielded	302	1 µm	39.4 µin	Brass	IP50	Silver	Push-Pull	Polyetheretherketone (PEEK)	Male Pins, Plug	Bulkhead - Rear Side Nut
LEMO FAG.2B.304.CLA	Metal	Brass	Chrome	-55 °C	250 °C	G	4	Gold	15 A	UL94 V-0	Shielded	304	1 µm	39.4 µin	Brass	IP50	Silver	Push-Pull	Polyetheretherketone (PEEK)	Male Pins, Plug	Bulkhead - Rear Side Nut
LEMO FAG.2B.307.CLA	Metal	Brass	Chrome	-55 °C	250 °C	G	7	Gold	11 A	UL94 V-0	Shielded	307	1 µm	39.4 µin	Brass	IP50	Silver	Push-Pull	Polyetheretherketone (PEEK)	Male Pins, Plug	Bulkhead - Rear Side Nut
