ANT-I-4A

Active

OptiFuse

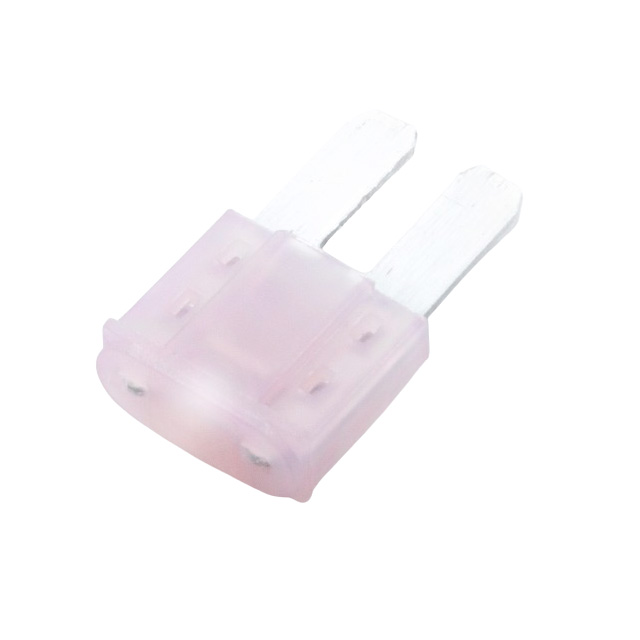

FUSE AUTO 4A 32VDC BLADE MICRO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 4A 32VDC BLADE MICRO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 A AC 32 V DC Fuse Automotive Requires Holder Blade, Micro

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ANT-I-4A	ANT-I Series

Approval Agency	ISO, SAE	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Pink	Pink, Violet
Current Rating (Amps)	4 A	3 - 25 A
DC Cold Resistance	0.023 Ohms	0.023 - 0.31 Ohms
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Blade, Micro	Blade, Micro
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.358 in	0.358 in
Size / Dimension [x]	9.1 mm	9.1 mm
Size / Dimension [y]	0.15 "	0.15 "
Size / Dimension [y]	3.8 mm	3.8 mm
Size / Dimension [z]	7.9 mm	7.9 mm
Size / Dimension [z]	0.311 "	0.311 "
Voltage Rating - DC	32 V	32 V

FUSE AUTO 10A 32VDC BLADE MICRO

Part	Response Time	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Breaking Capacity @ Rated Voltage	Approval Agency	Current Rating (Amps)	Voltage Rating - DC	Package / Case	Fuse Type	Mounting Type	Color	DC Cold Resistance
OptiFuse ANT-I-10A	Fast Blow	0.15 "	0.358 in	7.9 mm	0.311 "	3.8 mm	9.1 mm	1 kA	ISO, SAE	10 A	32 V	Blade, Micro	Automotive	Requires Holder
OptiFuse ANT-I-4A	Fast Blow	0.15 "	0.358 in	7.9 mm	0.311 "	3.8 mm	9.1 mm	1 kA	ISO, SAE	4 A	32 V	Blade, Micro	Automotive	Requires Holder	Pink	0.023 Ohms
OptiFuse ANT-I-20A	Fast Blow	0.15 "	0.358 in	7.9 mm	0.311 "	3.8 mm	9.1 mm	1 kA	ISO, SAE	20 A	32 V	Blade, Micro	Automotive	Requires Holder
OptiFuse ANT-I-3A	Fast Blow	0.15 "	0.358 in	7.9 mm	0.311 "	3.8 mm	9.1 mm	1 kA	ISO, SAE	3 A	32 V	Blade, Micro	Automotive	Requires Holder	Violet	0.31 Ohms
OptiFuse ANT-I-25A	Fast Blow	0.15 "	0.358 in	7.9 mm	0.311 "	3.8 mm	9.1 mm	1 kA	ISO, SAE	25 A	32 V	Blade, Micro	Automotive	Requires Holder
OptiFuse ANT-I-15A	Fast Blow	0.15 "	0.358 in	7.9 mm	0.311 "	3.8 mm	9.1 mm	1 kA	ISO, SAE	15 A	32 V	Blade, Micro	Automotive	Requires Holder
OptiFuse ANT-I-5A	Fast Blow	0.15 "	0.358 in	7.9 mm	0.311 "	3.8 mm	9.1 mm	1 kA	ISO, SAE	5 A	32 V	Blade, Micro	Automotive	Requires Holder
