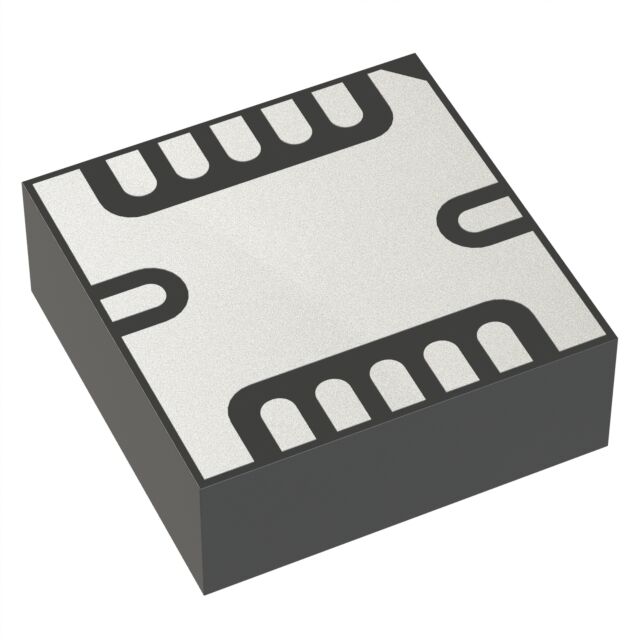

MAAM-011275-TR0500
ActiveMACOM Technology Solutions
IC RF AMP GPS 30KHZ-50GHZ 12AQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAAM-011275-TR0500
ActiveMACOM Technology Solutions
IC RF AMP GPS 30KHZ-50GHZ 12AQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAAM-011275-TR0500 |
|---|---|
| Frequency [Max] | 50 GHz |
| Frequency [Min] | 30 kHz |
| Gain | 14 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 6.5 dB |
| P1dB | 20.5 dBm |
| Package / Case | 12-FQFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 12-AQFN (5x5) |
| Test Frequency | 21 GHz |
| Voltage - Supply | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 118.60 | |
| 10 | $ 104.49 | |||
| 25 | $ 104.01 | |||
| Digi-Reel® | 1 | $ 118.60 | ||
| 10 | $ 104.49 | |||
| 25 | $ 104.01 | |||
| Tape & Reel (TR) | 500 | $ 86.13 | ||
Description
General part information
MAAM-011275 Series
RF Amplifier IC General Purpose 30kHz ~ 50GHz 12-AQFN (5x5)
