SSM-106-L-SV-LC

Active

Samtec Inc.

CONN RCPT 6POS 0.1 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSurface Mount PCB Socket Strips, .100" pitch Datasheet +1

SSM-106-L-SV-LC

Active

Samtec Inc.

CONN RCPT 6POS 0.1 GOLD SMD

Deep-Dive with AI

DocumentsSurface Mount PCB Socket Strips, .100" pitch Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSM-106-L-SV-LC

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	572 VDC, 405 VAC

SSM-106 Series

...

Part	Contact Material	Contact Type	Connector Type	Voltage Rating	Number of Positions Loaded	Current Rating (Amps)	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Mounting Type	Number of Positions	Insulation Height	Insulation Height	Number of Rows	Contact Finish - Post	Contact Shape	Style	Features	Contact Finish - Mating	Insulation Material	Fastening Type	Number of Positions Loaded [custom]
Samtec Inc. SSM-106-F-DV-BE-K	Phosphor Bronze	Female Socket	Receptacle Bottom Entry	405 VAC 572 VDC	All	5.2 A	Black	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	3 µin	0.076 µm	Solder	Surface Mount	12	7.37 mm	0.29 in	2	Tin	Square	Board to Board Cable	Pick and Place	Gold	Liquid Crystal Polymer (LCP)	Push-Pull
Samtec Inc. SSM-106-L-DV-K	Phosphor Bronze	Female Socket	Pass Through Receptacle	405 VAC 572 VDC	All	5.2 A	Black	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	Surface Mount	12	7.37 mm	0.29 in	2	Tin	Square	Board to Board Cable	Pick and Place	Gold	Liquid Crystal Polymer (LCP)	Push-Pull
Samtec Inc. SSM-106-L-SV-BE-LC-TR	Phosphor Bronze	Female Socket	Receptacle Bottom Entry	405 VAC 572 VDC	All	5.2 A	Black	-55 °C	125 °C			0.1 in	2.54 mm	10 çin	0.25 çm	Solder	Surface Mount	6	7.37 mm	0.29 in	1	Tin	Square	Board to Board Cable		Gold	Liquid Crystal Polymer (LCP)	Push-Pull
Samtec Inc. SSM-106-L-SV-LC	Phosphor Bronze	Female Socket	Pass Through Receptacle	405 VAC 572 VDC	All	5.2 A	Black	-55 °C	125 °C			0.1 in	2.54 mm	10 çin	0.25 çm	Solder	Surface Mount	6	7.37 mm	0.29 in	1	Tin	Square	Board to Board Cable		Gold	Liquid Crystal Polymer (LCP)	Push-Pull
Samtec Inc. SSM-106-S-DV-BE-A	Phosphor Bronze	Female Socket	Receptacle Bottom Entry	405 VAC 572 VDC	All	5.2 A	Black	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	30 Áin	0.76 Ám	Solder	Surface Mount	12	7.37 mm	0.29 in	2	Tin	Square	Board to Board Cable	Board Guide	Gold	Liquid Crystal Polymer (LCP)	Push-Pull
Samtec Inc. SSM-106-F-DV-BE-LC-P	Phosphor Bronze	Female Socket	Receptacle Bottom Entry	405 VAC 572 VDC	All	5.2 A	Black	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	3 µin	0.076 µm	Solder	Surface Mount	12	7.37 mm	0.29 in	2	Tin	Square	Board to Board Cable	Board Lock Pick and Place	Gold	Liquid Crystal Polymer (LCP)	Push-Pull
Samtec Inc. SSM-106-LM-SV-BE	Phosphor Bronze	Female Socket	Receptacle Bottom Entry	405 VAC 572 VDC	All	5.2 A	Black	-55 °C	125 °C			0.1 in	2.54 mm	10 çin	0.25 çm	Solder	Surface Mount	6	7.37 mm	0.29 in	1	Tin	Square	Board to Board Cable		Gold	Liquid Crystal Polymer (LCP)	Push-Pull
Samtec Inc. SSM-106-S-SV-002	Phosphor Bronze	Female Socket	Pass Through Receptacle	405 VAC 572 VDC		5.2 A	Black	-55 °C	125 °C			0.1 in	2.54 mm	30 Áin	0.76 Ám	Solder	Surface Mount	6	7.37 mm	0.29 in	1	Tin	Square	Board to Board Cable		Gold	Liquid Crystal Polymer (LCP)	Push-Pull	5
Samtec Inc. SSM-106-F-SV-BE-TR	Phosphor Bronze	Female Socket	Receptacle Bottom Entry	405 VAC 572 VDC	All	5.2 A	Black	-55 °C	125 °C			0.1 in	2.54 mm	3 µin	0.076 µm	Solder	Surface Mount	6	7.37 mm	0.29 in	1	Tin	Square	Board to Board Cable		Gold	Liquid Crystal Polymer (LCP)	Push-Pull
Samtec Inc. SSM-106-L-DV-BE-A-P-TR	Phosphor Bronze	Female Socket	Receptacle Bottom Entry	405 VAC 572 VDC	All	5.2 A	Black	-55 °C	125 °C	2.54 mm	0.1 in	0.1 in	2.54 mm	10 çin	0.25 çm	Solder	Surface Mount	12	7.37 mm	0.29 in	2	Tin	Square	Board to Board Cable	Board Guide Pick and Place	Gold	Liquid Crystal Polymer (LCP)	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.23

Description

General part information

SSM-106 Series

6 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Surface Mount Gold

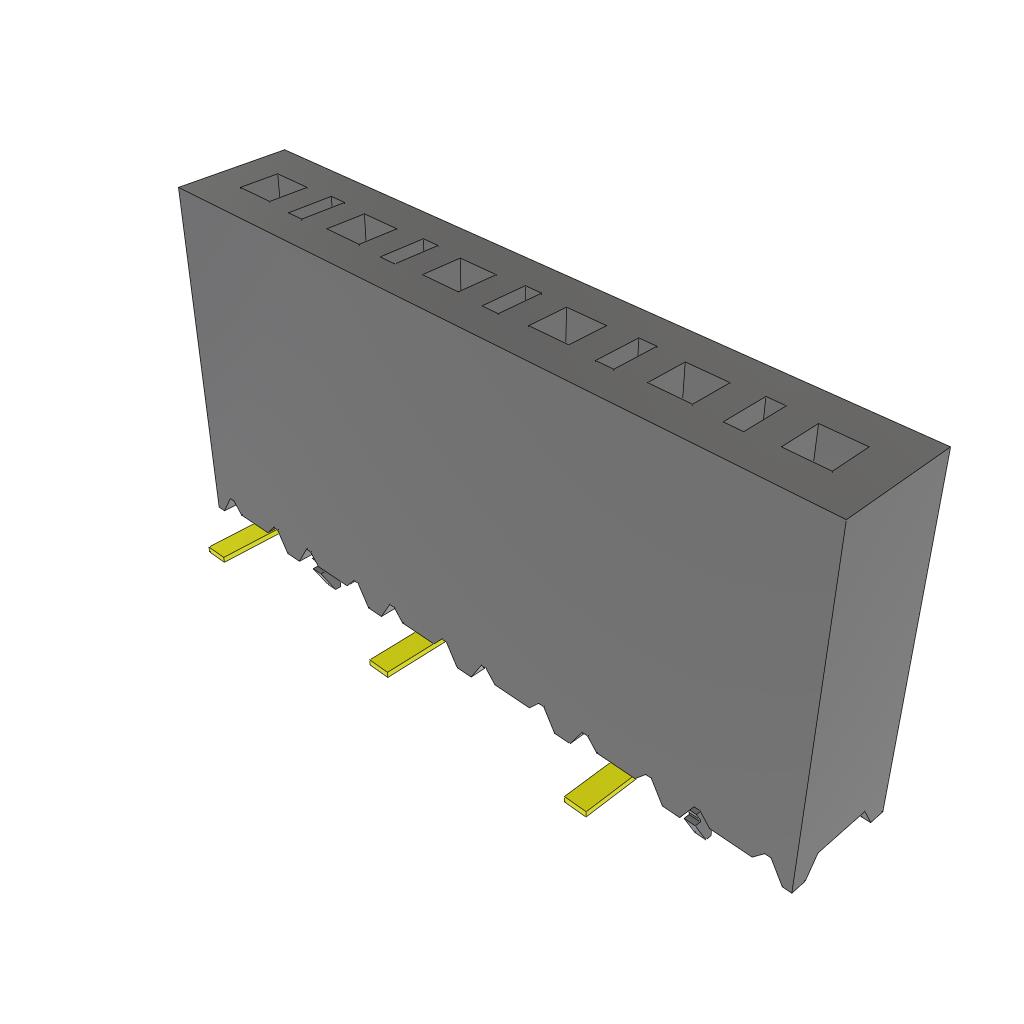

SSM-106-L-SV-LC
