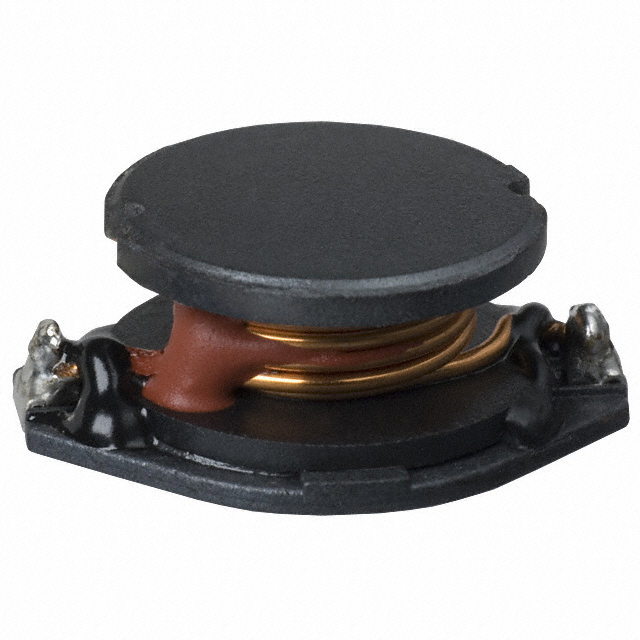

PM5022-2R2M-RC

Active

Bourns Inc.

FIXED IND 2.2UH 9A 6.8 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM5022-2R2M-RC

Active

Bourns Inc.

FIXED IND 2.2UH 9A 6.8 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM5022-2R2M-RC

Current - Saturation (Isat)	22 A
DC Resistance (DCR)	6.8 mOhm
Frequency - Self Resonant	7.96 MHz
Height - Seated (Max) [Max] [z]	0.272 "
Height - Seated (Max) [Max] [z]	6.9 mm
Inductance	2.2 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	22, 55 MHz
Shielding	Unshielded
Tolerance	20 %
Type	Wirewound, Drum Core

PM5022 Series

Part	Tolerance	Inductance	Inductance Frequency - Test	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Mounting Type	Type	Material - Core	Package / Case	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Frequency - Self Resonant	Q @ Freq
Bourns Inc. PM5022-101M	20 %	100 µH	100 kHz	Unshielded	0.272 "	6.9 mm	1.7 A	Surface Mount	Drum Core Wirewound	Ferrite	Nonstandard	3.2 A	105 ░C	-55 °C	190 mOhm
Bourns Inc. PM5022-330M	20 %	33 µH	100 kHz	Unshielded	0.272 "	6.9 mm	3 A	Surface Mount	Drum Core Wirewound	Ferrite	Nonstandard	5.4 A	105 ░C	-55 °C	66 mOhm
Bourns Inc. PM5022-2R2M-RC	20 %	2.2 µH	100 kHz	Unshielded	0.272 "	6.9 mm		Surface Mount	Drum Core Wirewound	Ferrite	Nonstandard	22 A	125 °C	-40 °C	6.8 mOhm	7.96 MHz	22 55 MHz
Bourns Inc. PM5022-151M-RC	20 %	150 µH	100 kHz	Unshielded	0.272 "	6.9 mm	1.4 A	Surface Mount	Drum Core Wirewound	Ferrite	Nonstandard	2.6 A	125 °C	-40 °C	270 mOhm	796 kHz	5 MHz 23
Bourns Inc. PM5022-100M-RC	20 %	10 µH	100 kHz	Unshielded	0.272 "	6.9 mm	5.3 A	Surface Mount	Drum Core Wirewound	Ferrite	Nonstandard	10 A	125 °C	-40 °C	25 mOhm	2.52 MHz	22 25 MHz
Bourns Inc. PM5022-100M	20 %	10 µH	100 kHz	Unshielded	0.272 "	6.9 mm	5.3 A	Surface Mount	Drum Core Wirewound	Ferrite	Nonstandard	10 A	105 ░C	-55 °C	32 mOhm
Bourns Inc. PM5022-681M-RC	20 %	680 µH	100 kHz	Unshielded	0.272 "	6.9 mm	700 mA	Surface Mount	Drum Core Wirewound	Ferrite	Nonstandard	1.2 A	125 °C	-40 °C	1.2 Ohm	2.5 MHz	12 796 kHz
Bourns Inc. PM5022-101M-RC	20 %	100 µH	100 kHz	Unshielded	0.272 "	6.9 mm	1.7 A	Surface Mount	Drum Core Wirewound	Ferrite	Nonstandard	3.2 A	125 °C	-40 °C	190 mOhm	796 kHz	7 MHz 25
Bourns Inc. PM5022-680M-RC	20 %	68 µH	100 kHz	Unshielded	0.272 "	6.9 mm	2.1 A	Surface Mount	Drum Core Wirewound	Ferrite	Nonstandard	3.8 A	125 °C	-40 °C	130 mOhm	2.52 MHz	2.52 MHz 22
Bourns Inc. PM5022-221K-RC	10 %	220 µH	100 kHz	Unshielded	0.272 "	6.9 mm	1.1 A	Surface Mount	Drum Core Wirewound	Ferrite	Nonstandard	2.2 A	125 °C	-40 °C	420 mOhm	796 kHz	4.5 MHz 20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 0.48

Description

General part information

PM5022 Series

2.2 µH Unshielded Drum Core, Wirewound Inductor 9 A 6.8mOhm Nonstandard
