R121464000

Active

Radiall USA, Inc.

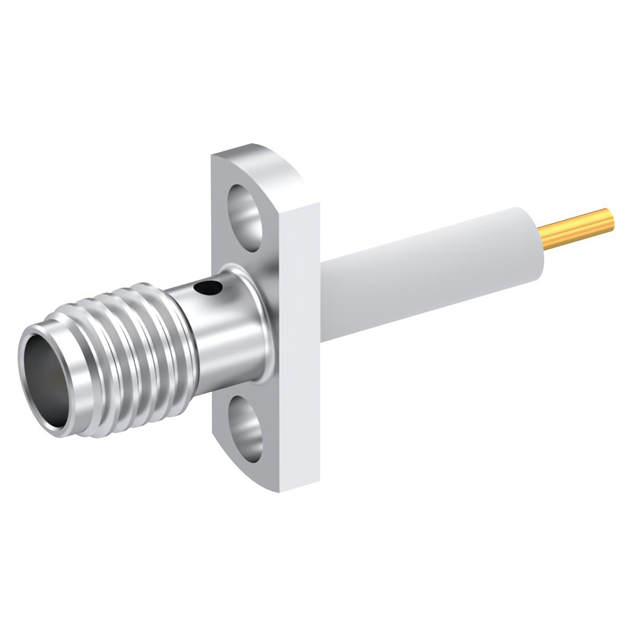

SSMA / 2 HOLE FLANGE RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMA / 2 HOLE FLANGE RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R121464000

Body Material	Stainless Steel
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	SSMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	26.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Center Contact Plating	Frequency - Max [Max]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Mounting Type	Housing Color	Dielectric Material	Connector Style	Impedance	Contact Termination	Body Material	Mounting Feature	Number of Ports	Mating Cycles	Center Contact Material
Radiall USA, Inc. R121464000	250 VDC	Gold	26.5 GHz	Female Socket Jack	125 °C	-65 ░C	Solder	Panel Mount Through Hole	Silver	Polytetrafluoroethylene (PTFE)	SSMA	50 Ohms	Solder	Stainless Steel	Flange	1	500	Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 114.12

General part information

SSMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
