895-071-525-412

Active

EDAC Inc.

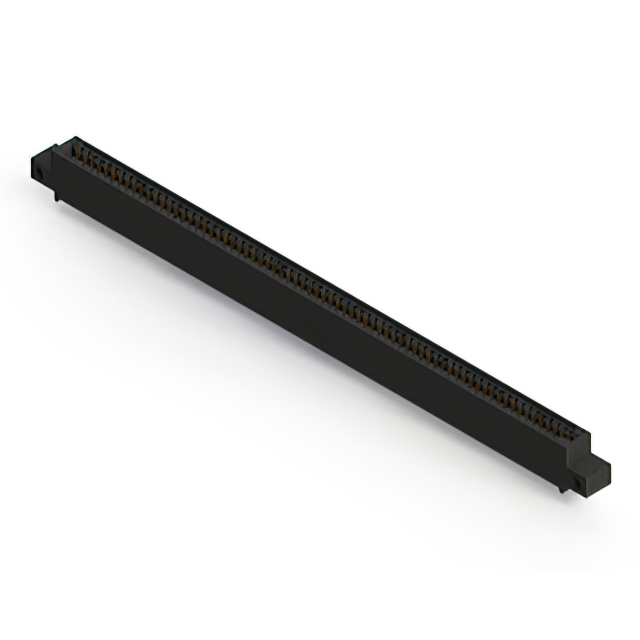

CARD EDGE CONNECTOR, 71 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-071-525-412

Active

EDAC Inc.

CARD EDGE CONNECTOR, 71 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-071-525-412

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	71
Number of Positions/Bay/Row [custom]	71
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

895-071 Series

...

Part	Card Type	Read Out	Contact Material	Number of Positions/Bay/Row [custom]	Mounting Type	Pitch [x]	Pitch [x]	Flange Feature	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Color	Number of Rows	Termination Rows	Termination	Contact Type	Material - Insulation	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 895-071-500-602	Non Specified - Single Edge	Single	Copper Alloy	71	Through Hole	2.54 mm	0.1 in	3.25 mm	0.128 in	10 Áin	0.25 Ám	125 °C	-40 °C	71	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	1	1	Solder Eyelet(s)	Cantilever	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-071-540-108	Non Specified - Single Edge	Single	Copper Alloy	71	Through Hole	2.54 mm	0.1 in			10 Áin	0.25 Ám	125 °C	-40 °C	71	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	1	1	Wire Wrap	Cantilever	Polyphenylene Sulfide (PPS)	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 895-071-520-603	Non Specified - Single Edge	Single	Copper Alloy	71	Through Hole	2.54 mm	0.1 in			10 Áin	0.25 Ám	125 °C	-40 °C	71	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	1	1	Solder	Cantilever	Polyphenylene Sulfide (PPS)	Floating Bobbin Top Mount Opening	2.95 mm	0.116 in
EDAC Inc. 895-071-558-107	Non Specified - Single Edge	Single	Copper Alloy	71	Through Hole Right Angle	2.54 mm	0.1 in			10 Áin	0.25 Ám	125 °C	-40 °C	71	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	1	1	Solder	Cantilever	Polyphenylene Sulfide (PPS)	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 895-071-523-612	Non Specified - Single Edge	Single	Copper Alloy	71	Through Hole	2.54 mm	0.1 in	3.25 mm	0.128 in	10 Áin	0.25 Ám	125 °C	-40 °C	71	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	1	1	Solder	Cantilever	Polyphenylene Sulfide (PPS)	Side Mount Opening Unthreaded
EDAC Inc. 895-071-525-412	Non Specified - Single Edge	Single	Copper Alloy	71	Through Hole	2.54 mm	0.1 in	3.25 mm	0.128 in	10 Áin	0.25 Ám	125 °C	-40 °C	71	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	1	1	Solder	Cantilever	Polyphenylene Sulfide (PPS)	Side Mount Opening Unthreaded
EDAC Inc. 895-071-525-102	Non Specified - Single Edge	Single	Copper Alloy	71	Through Hole	2.54 mm	0.1 in			10 Áin	0.25 Ám	125 °C	-40 °C	71	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	1	1	Solder	Cantilever	Polyphenylene Sulfide (PPS)	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 895-071-544-408	Non Specified - Single Edge	Single	Copper Alloy	71	Through Hole	2.54 mm	0.1 in			10 Áin	0.25 Ám	125 °C	-40 °C	71	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	1	1	Wire Wrap	Cantilever	Polyphenylene Sulfide (PPS)	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 895-071-523-402	Non Specified - Single Edge	Single	Copper Alloy	71	Through Hole	2.54 mm	0.1 in	3.25 mm	0.128 in	10 Áin	0.25 Ám	125 °C	-40 °C	71	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	1	1	Solder	Cantilever	Polyphenylene Sulfide (PPS)
EDAC Inc. 895-071-520-101	Non Specified - Single Edge	Single	Copper Alloy	71	Through Hole	2.54 mm	0.1 in			10 Áin	0.25 Ám	125 °C	-40 °C	71	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Black	1	1	Solder	Cantilever	Polyphenylene Sulfide (PPS)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 162.77

Description

General part information

895-071 Series

71 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
