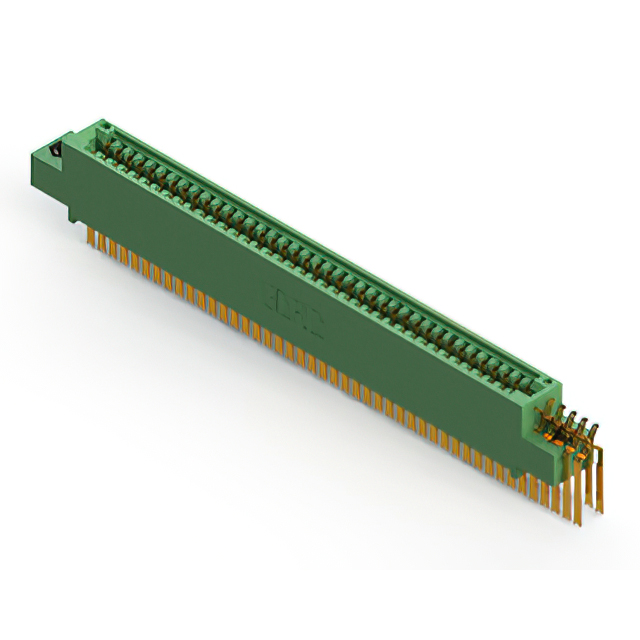

845-090-500-507

Active

EDAC Inc.

845 HIGH TEMP' SERIES (.100" (2.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-090-500-507

Active

EDAC Inc.

845 HIGH TEMP' SERIES (.100" (2.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-090-500-507

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	90
Number of Positions/Bay/Row [custom]	45
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

845-090 Series

...

Part	Card Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination Rows	Mounting Type	Gender	Termination	Color	Number of Rows	Material - Insulation	Number of Positions	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Number of Positions/Bay/Row [custom]	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Features
EDAC Inc. 845-090-500-203	Non Specified - Dual Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2	Through Hole	Female	Solder Eyelet(s)	Green	2	Diallyl Phthalate (DAP)	90	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	45	Copper Alloy	125 °C	-40 °C	Dual
EDAC Inc. 845-090-559-504	Non Specified - Dual Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	0.156 in	Top Mount Opening Unthreaded	3.96 mm	2	Through Hole Right Angle	Female	Solder	Green	2	Diallyl Phthalate (DAP)	90	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	45	Copper Alloy	125 °C	-40 °C	Dual
EDAC Inc. 845-090-541-804	Non Specified - Dual Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	0.156 in	Top Mount Opening Unthreaded	3.96 mm	2	Through Hole	Female	Wire Wrap	Green	2	Diallyl Phthalate (DAP)	90	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	45	Copper Alloy	125 °C	-40 °C	Dual
EDAC Inc. 845-090-524-808	Non Specified - Dual Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám		4-40 Threaded Insert Top Mount Opening		2	Through Hole	Female	Solder	Green	2	Diallyl Phthalate (DAP)	90	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	45	Copper Alloy	125 °C	-40 °C	Dual
EDAC Inc. 845-090-540-503	Non Specified - Dual Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	2	Through Hole	Female	Wire Wrap	Green	2	Diallyl Phthalate (DAP)	90	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	45	Copper Alloy	125 °C	-40 °C	Dual
EDAC Inc. 845-090-500-507	Non Specified - Dual Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám		M3 Threaded Insert Top Mount Opening		2	Through Hole	Female	Solder Eyelet(s)	Green	2	Diallyl Phthalate (DAP)	90	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	45	Copper Alloy	125 °C	-40 °C	Dual
EDAC Inc. 845-090-560-212	Non Specified - Dual Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	2	Board Edge Straddle Mount	Female	Solder	Green	2	Diallyl Phthalate (DAP)	90	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	45	Copper Alloy	125 °C	-40 °C	Dual	Card Extender
EDAC Inc. 845-090-556-804	Non Specified - Dual Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	0.156 in	Top Mount Opening Unthreaded	3.96 mm	2	Board Edge Straddle Mount	Female	Solder	Green	2	Diallyl Phthalate (DAP)	90	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	45	Copper Alloy	125 °C	-40 °C	Dual	Card Extender
EDAC Inc. 845-090-523-508	Non Specified - Dual Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám		4-40 Threaded Insert Top Mount Opening		2	Through Hole	Female	Solder	Green	2	Diallyl Phthalate (DAP)	90	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	45	Copper Alloy	125 °C	-40 °C	Dual
EDAC Inc. 845-090-542-207	Non Specified - Dual Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening		2	Through Hole	Female	Wire Wrap	Green	2	Diallyl Phthalate (DAP)	90	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	45	Copper Alloy	125 °C	-40 °C	Dual

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 181.93

Description

General part information

845-090 Series

90 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
