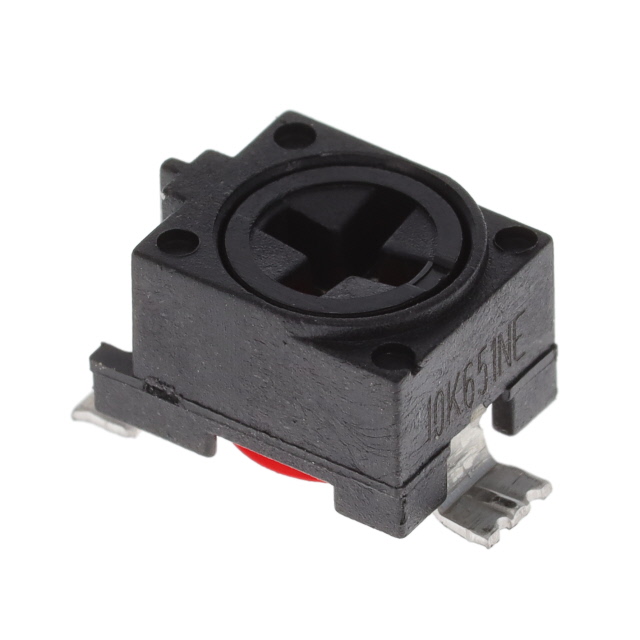

N6L50T8S-103A3030R-E

Active

Amphenol Piher Sensing Systems

TRIMMER 10K OHM 0.1W PC PIN TOP

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

TRIMMER 10K OHM 0.1W PC PIN TOP

Technical Specifications

Parameters and characteristics commom to parts in this series

TRIMMER 300 OHM 0.1W PC PIN TOP

Part	Resistive Material	Tolerance	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Number of Turns	Mounting Type	Adjustment Type	Termination Style	Resistance
Amphenol Piher Sensing Systems N6L50T0C-301-3030	Carbon	30 %	300 ppm/°C	0.252 "	6.4 mm	8.7 mm	0.343 in	0.1 W	0.1 W	1	Through Hole	Top Adjustment	PC Pins	300 Ohms
Amphenol Piher Sensing Systems N6L50T0C-472-3030	Carbon	30 %	300 ppm/°C	0.252 "	6.4 mm	8.7 mm	0.343 in	0.1 W	0.1 W	1	Through Hole	Top Adjustment	PC Pins	4.7 kOhms
Amphenol Piher Sensing Systems N6L50T0C-203	Carbon	30 %	300 ppm/°C	0.252 "	6.4 mm	8.7 mm	0.343 in	0.1 W	0.1 W	1	Through Hole	Top Adjustment	PC Pins	20 kOhms
Amphenol Piher Sensing Systems N6L50T8S-103A3030R-E	Carbon	30 %	300 ppm/°C	0.252 "	6.4 mm	8.7 mm	0.343 in	0.1 W	0.1 W	1	Through Hole	Top Adjustment	PC Pins	10000 Ohms
Amphenol Piher Sensing Systems N6L50T0C-103	Carbon	30 %	300 ppm/°C	0.252 "	6.4 mm	8.7 mm	0.343 in	0.1 W	0.1 W	1	Through Hole	Top Adjustment	PC Pins	10000 Ohms
Amphenol Piher Sensing Systems N6L50T0C-105	Carbon	30 %	300 ppm/°C	0.252 "	6.4 mm	8.7 mm	0.343 in	0.1 W	0.1 W	1	Through Hole	Top Adjustment	PC Pins	1 MOhms
Amphenol Piher Sensing Systems N6L50T0S-503A3030R-E	Carbon	30 %	300 ppm/°C	0.252 "	6.4 mm	8.7 mm	0.343 in	0.1 W	0.1 W	1	Through Hole	Top Adjustment	PC Pins	50 kOhms
Amphenol Piher Sensing Systems N6L50T0C-102-3030	Carbon	30 %	300 ppm/°C	0.252 "	6.4 mm	8.7 mm	0.343 in	0.1 W	0.1 W	1	Through Hole	Top Adjustment	PC Pins	1000 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 kOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
