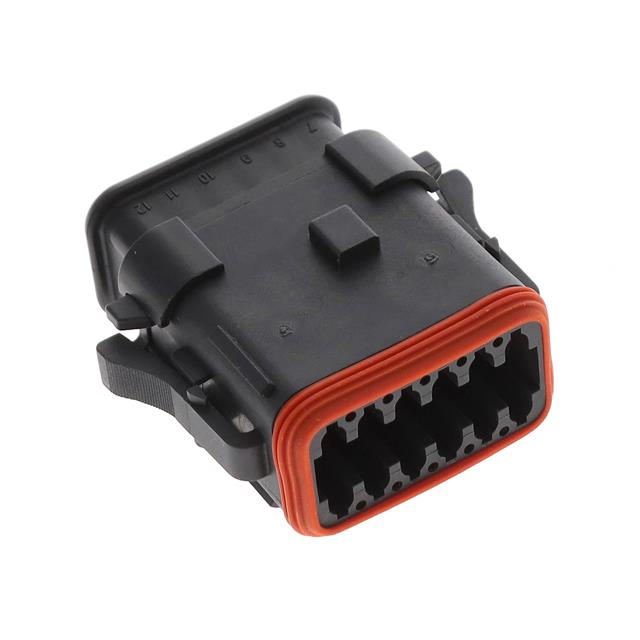

Specification	AT06-12SB-SRBK

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Strain Relief, Cap (Cover), Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

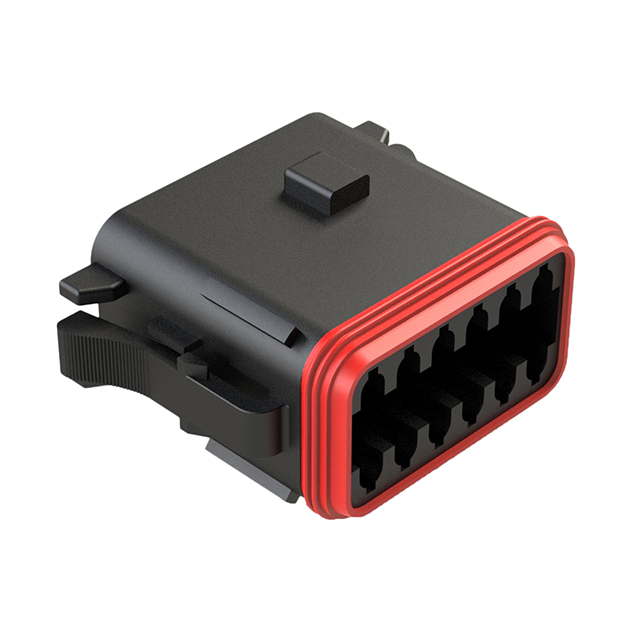

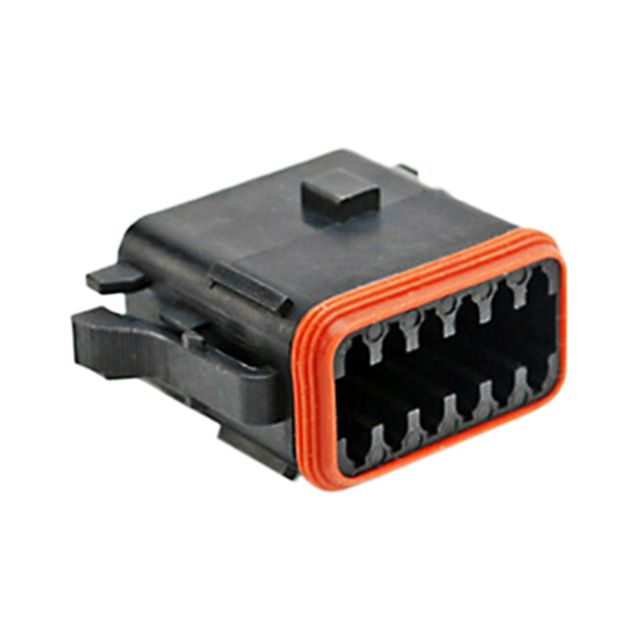

AT06-12SB Series

Part	Note	Mounting Type	Connector Type	Contact Termination	Features	Insulation Material	Contact Type	Number of Positions	Number of Rows	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Color
McGill Microwave Systems AT06-12SB-RD01	Contacts Not Included	Free Hanging (In-Line)	Plug	Crimp	Sealed	Thermoplastic	Female Socket	12	2	Latch Lock	125 °C	-55 °C	Black

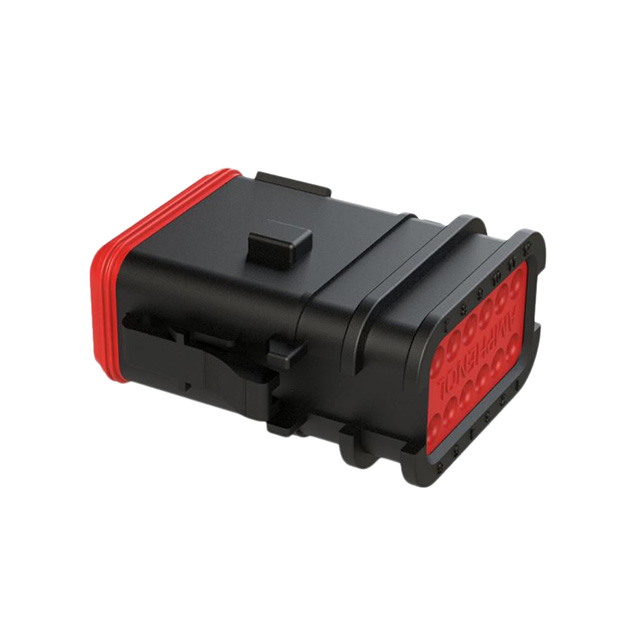

McGill Microwave Systems AT06-12SB-OMBLK	Contacts Not Included	Free Hanging (In-Line)	Plug	Crimp	IP67	Glass Filled Nylon 6/6 Polyamide (PA66)	Female Socket	12	2	Latch Lock	125 °C	-55 °C	Black
McGill Microwave Systems AT06-12SB-SRBK	Contacts Not Included	Free Hanging (In-Line)	Plug	Crimp	Cap (Cover) Sealed Strain Relief	Thermoplastic	Female Socket	12	2	Latch Lock	125 °C	-55 °C	Black
McGill Microwave Systems AT06-12SB-EC01	Contacts Not Included	Free Hanging (In-Line)	Plug	Crimp	Cap (Cover)	Thermoplastic	Female Socket	12	2	Latch Lock	125 °C	-55 °C	Black

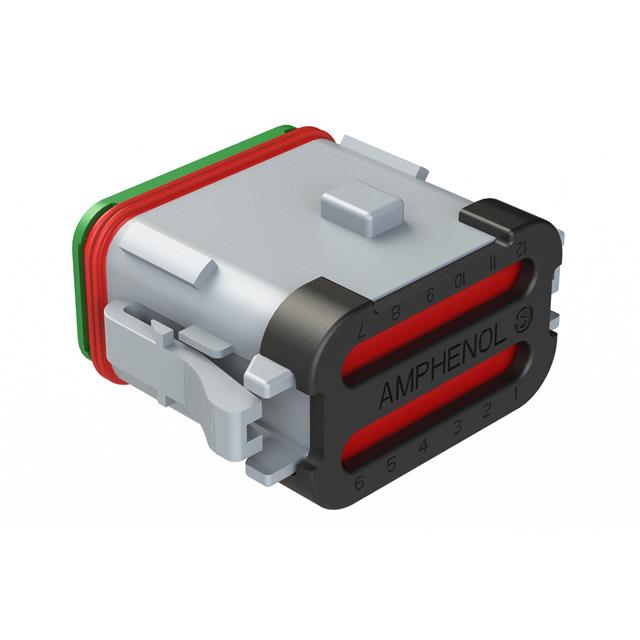

McGill Microwave Systems AT06-12SB-SS01	Contacts Not Included	Free Hanging (In-Line)	Plug	Crimp	Cap (Cover) Sealed	Thermoplastic	Female Socket	12	2	Latch Lock	125 °C	-55 °C	Black
