SS20W1G30

Obsolete

McGill Microwave Systems

CONTACT SOCKET 20-22AWG 20 CRIMP

SS20W1G30

Obsolete

McGill Microwave Systems

CONTACT SOCKET 20-22AWG 20 CRIMP

Description Specifications Series Pricing CAD Documents

Description

General part information

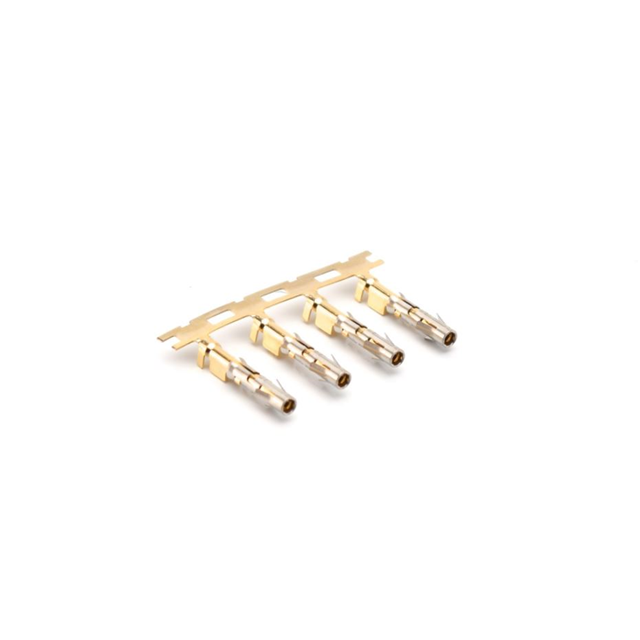

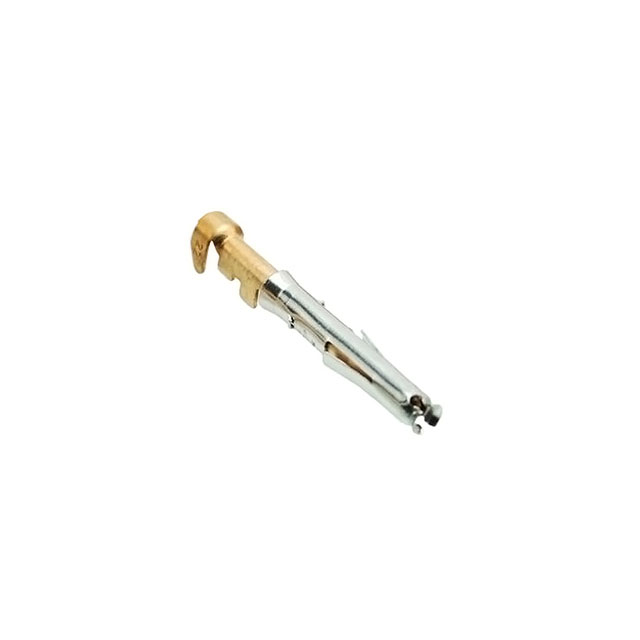

SS20 Series

Socket Contact 20-22 AWG Size 20 Crimp Gold

Technical Specifications

Parameters and characteristics for this part

Specification	SS20W1G30

Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Size	20
Contact Termination	Crimp
Contact Type	Socket
Features	Insulation Support
Type	Stamped, Signal
Wire Gauge or Range - AWG (Max)	22 AWG
Wire Gauge or Range - AWG (Min)	20 AWG
Wire Gauge or Range - mm² (Maximum)	0.5 mm²
Wire Gauge or Range - mm² (Minimum)	0.34 mm²

SS20 Series

Part	Contact Finish	Contact Type	Features	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Contact Material	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Termination Finish	Type	Contact Size	Contact Termination
McGill Microwave Systems SS20W1F	Gold	Socket	Insulation Support	0.5 mm²	0.34 mm²	Copper Alloy	20 AWG	22 AWG	0	Flash	Flash	Copper Alloy	Signal Stamped	20	Crimp
McGill Microwave Systems SS20M2G30	Gold	Socket	Insulation Support	0.5 mm²	0.34 mm²	Copper Alloy	20 AWG	22 AWG	30 µin				Signal Stamped	16 S	Crimp
McGill Microwave Systems SS20W2G5	Gold	Socket	Insulation Support	0.5 mm²	0.34 mm²	Copper Alloy	20 AWG	22 AWG	5 µin				Signal Stamped	20	Crimp
McGill Microwave Systems SS20M2F	Gold	Socket	Insulation Support	0.5 mm²	0.34 mm²	Copper Alloy	20 AWG	22 AWG	0	Flash	Flash		Signal Stamped	16 S	Crimp
McGill Microwave Systems SS20M1G15	Gold	Socket	Insulation Support	0.5 mm²	0.34 mm²	Copper Alloy	20 AWG	22 AWG	15 µin				Signal Stamped	16 S	Crimp
McGill Microwave Systems SS20W2F	Gold	Socket	Insulation Support	0.5 mm²	0.34 mm²	Copper Alloy	20 AWG	22 AWG	0	Flash	Flash		Signal Stamped	20	Crimp
McGill Microwave Systems SS20W1T	Tin	Socket	Insulation Support	0.5 mm²	0.34 mm²	Copper Alloy	20 AWG	22 AWG					Signal Stamped	20	Crimp
McGill Microwave Systems SS20M2T	Tin	Socket	Insulation Support	0.5 mm²	0.34 mm²	Copper Alloy	20 AWG	22 AWG					Signal Stamped	16 S	Crimp
McGill Microwave Systems SS20W1G30	Gold	Socket	Insulation Support	0.5 mm²	0.34 mm²	Copper Alloy	20 AWG	22 AWG	30 µin				Signal Stamped	20	Crimp
McGill Microwave Systems SS20M1G30	Gold	Socket	Insulation Support	0.5 mm²	0.34 mm²	Copper Alloy	20 AWG	22 AWG	30 µin				Signal Stamped	16 S	Crimp
