MDM-21SH011P-A174
ActiveITT Cannon, LLC
CABLE ASSY D-MIC-D 21P 914.4MM
Deep-Dive with AI
Search across all available documentation for this part.
MDM-21SH011P-A174
ActiveITT Cannon, LLC
CABLE ASSY D-MIC-D 21P 914.4MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MDM-21SH011P-A174 |
|---|---|
| 1st Connector | Receptacle, Female Sockets |
| 2nd Connector | Individual Wire Leads |
| Color | Individual, Yellow |
| Contact Finish | Gold |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 21 |
| Shielding | Unshielded |
| Type | D-Type, Micro-D |
MDM-21 Series
...
| Part | Color | Contact Finish | 2nd Connector | Number of Positions | Type | Length [x] | Length [x] | 1st Connector | Shielding |
|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Individual Multiple | Gold | Individual Wire Leads | 21 | D-Type Micro-D | 3 ft | 914.4 mm | Female Sockets Plug | |
ITT Cannon, LLC | Individual Multiple | Gold | Individual Wire Leads | 21 | D-Type Micro-D | 3 ft | 914.4 mm | Female Sockets Plug | |
ITT Cannon, LLC | Gold | Individual Wire Leads | 21 | D-Type Micro-D | Plug Male Pins | Unshielded | |||
ITT Cannon, LLC | Individual Multiple | Gold | Individual Wire Leads | 21 | D-Type Micro-D | 3 ft | 914.4 mm | Male Pins Receptacle | |
ITT Cannon, LLC | Individual Multiple | Gold | Individual Wire Leads | 21 | D-Type Micro-D | 3 ft | 914.4 mm | Plug Male Pins | Unshielded |
ITT Cannon, LLC | Individual Yellow | Gold | Individual Wire Leads | 21 | D-Type Micro-D | 3 ft | 914.4 mm | Female Sockets Receptacle | Unshielded |
ITT Cannon, LLC | Individual Yellow | Gold | Individual Wire Leads | 21 | D-Type Micro-D | 3 ft | 914.4 mm | Female Sockets Receptacle | Unshielded |
ITT Cannon, LLC | Individual Multiple | Gold | Individual Wire Leads | 21 | D-Type Micro-D | 1.5 ft | 457.2 mm | Female Sockets Receptacle | Unshielded |
ITT Cannon, LLC | Individual Multiple | Gold | Individual Wire Leads | 21 | D-Type Micro-D | 30 " | 762 mm | Plug Male Pins | Unshielded |
ITT Cannon, LLC | Individual Multiple | Gold | Individual Wire Leads | 21 | D-Type Micro-D | 1.5 ft | 457.2 mm | Plug Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 239.16 | |
| 10 | $ 221.62 | |||
| 25 | $ 213.65 | |||
Description
General part information
MDM-21 Series

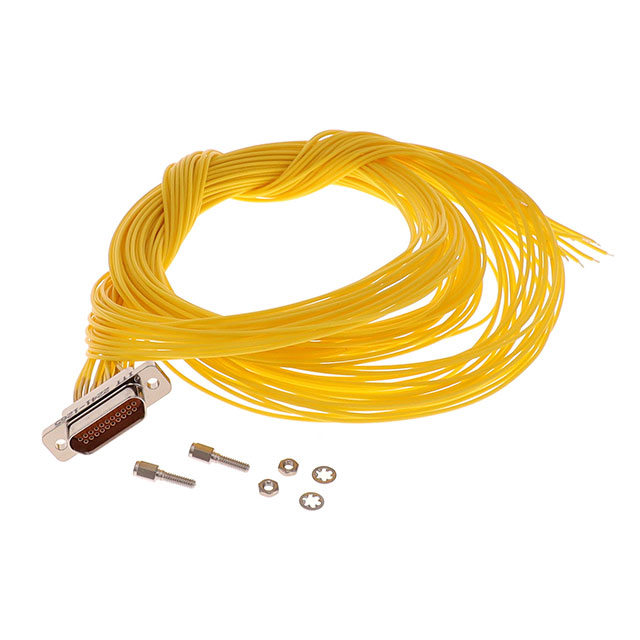

D-Sub Cable Assembly D-Type, Micro-D Yellow, Individual 3.00' (914.40mm) Receptacle, Female Sockets to Individual Wire Leads Unshielded
Documents
Technical documentation and resources
No documents available
