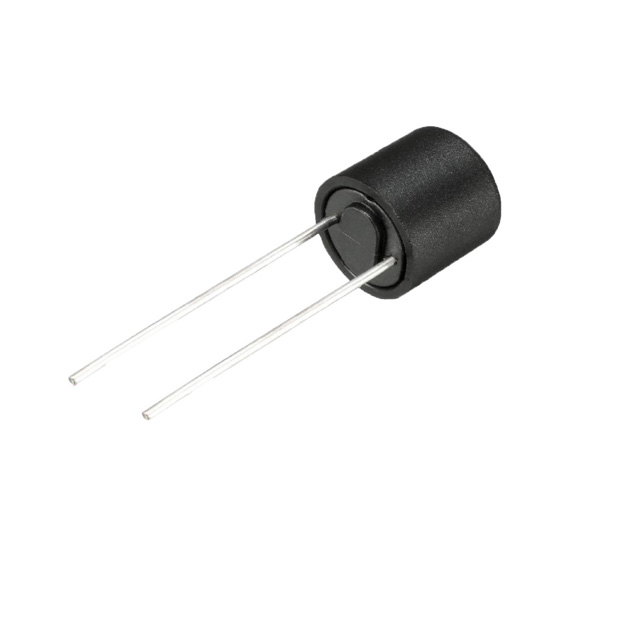

TMR-200MA

Active

OptiFuse

FUSE BRD MNT 200MA 250VAC RADIAL

Search across all available documentation for this part.

Active

OptiFuse

FUSE BRD MNT 200MA 250VAC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	TMR-200MA

Approval Agency	UL 248, cULus
Breaking Capacity @ Rated Voltage	50 A
Current Rating (Amps)	0.2 A
Fuse Type	Board Mount
Melting I²t	0.1
Mounting Type	Through Hole
Package / Case	Vertical, Radial, Can
Response Time	Slow Blow
Size / Dimension [diameter]	0.335 "
Size / Dimension [diameter]	8.5 mm
Size / Dimension [z]	0.327 in
Size / Dimension [z]	8.3 mm
Voltage Rating - AC	250 V

FUSE BRD MNT 200MA 250VAC RADIAL

Part	Response Time	Approval Agency	Voltage Rating - AC	Current Rating (Amps)	Package / Case	Mounting Type	Fuse Type	Melting I²t	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Breaking Capacity @ Rated Voltage
OptiFuse TMR-200MA	Slow Blow	cULus, UL 248	250 V	0.2 A	Can, Radial, Vertical	Through Hole	Board Mount	0.1	0.335 "	0.327 in	8.3 mm	8.5 mm	50 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

200 mA 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Can, Vertical

Technical documentation and resources
