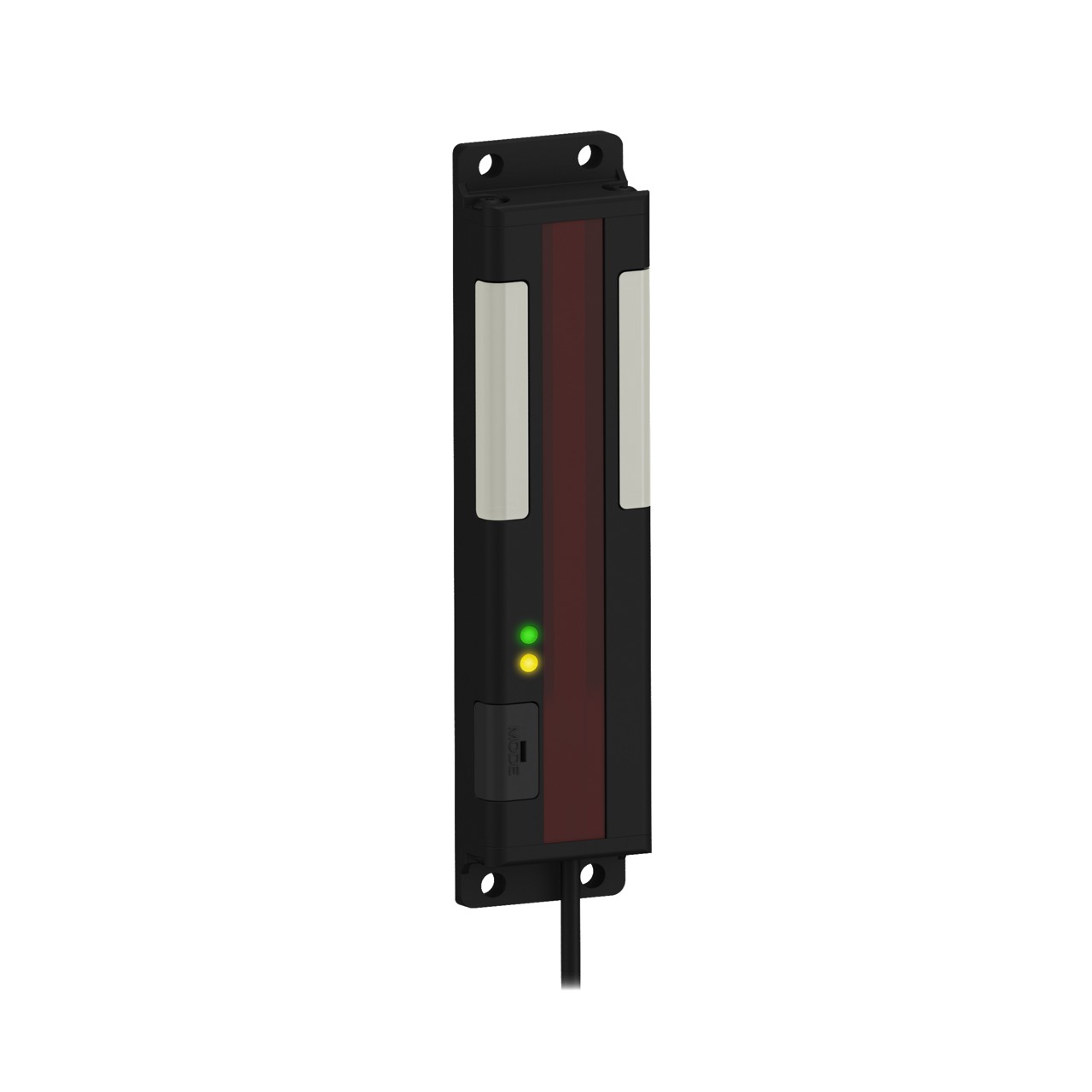

PVA100P6Q W/6IN

Active

BANNER ENGINEERING

PVA SERIES: 100 MM ARRAYE/R

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PVA SERIES: 100 MM ARRAYE/R

Technical Specifications

Parameters and characteristics for this part

Part	Connection Method	Output Configuration	Sensing Distance	Sensing Distance	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Cable Length	Cable Length	Light Source	Sensing Method	Ingress Protection	Operating Temperature
BANNER ENGINEERING PVA100N6RQ	Cable with Connector	NPN	78.74 "	2 m	20 ms	12 V	30 VDC	78.74 in	2 m	Green LED	Through-Beam	IP62 NEMA 2
BANNER ENGINEERING PVA100P6Q	Cable with Connector	PNP	78.74 "	2 m	20 ms	12 V	30 VDC	78.74 in	2 m	Green LED	Through-Beam	NEMA 2 IP62
BANNER ENGINEERING PVA100P6Q W/6IN	Cable with Connector	NPN/PNP	78.74 "	2 m	20 ms	12 V	30 VDC	5.906 in	150 mm	Green LED	Through-Beam	IEC IP62 NEMA 2	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 641.00
Newark	Each	1	$ 641.00

General part information

Through-Beam Optical Sensor 78.740" (2m) NPN/PNP

Technical documentation and resources
