846-040-521-607

Active

EDAC Inc.

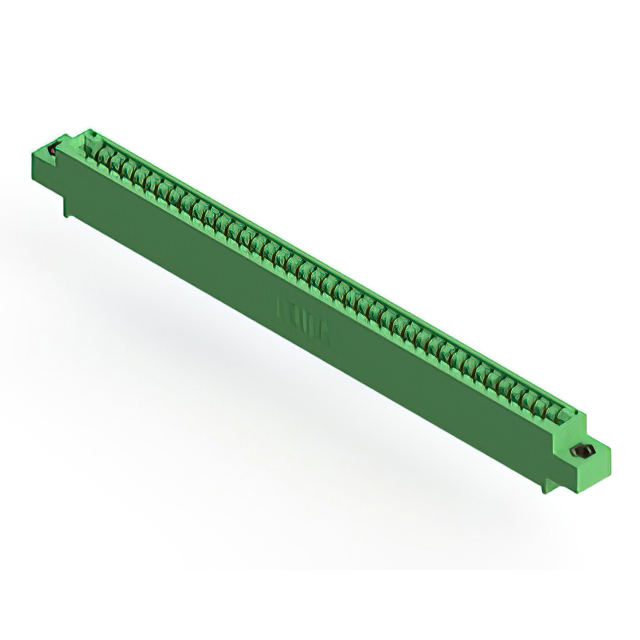

CONN EDGE SGL FMALE 40POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-040-521-607

Active

EDAC Inc.

CONN EDGE SGL FMALE 40POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-040-521-607

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	40
Number of Positions/Bay/Row [custom]	40
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

846-040 Series

...

Part	Number of Rows	Termination Rows	Mounting Type	Card Type	Material - Insulation	Flange Feature	Number of Positions/Bay/Row [custom]	Read Out	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Color	Contact Finish Thickness	Contact Finish Thickness	Gender	Termination	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature
EDAC Inc. 846-040-540-607	1	1	Through Hole	Non Specified - Single Edge	Diallyl Phthalate (DAP)	M3 Threaded Insert Top Mount Opening	40	Single	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Green	10 Áin	0.25 Ám	Female	Wire Wrap	40	125 °C	-40 °C	Gold	Copper Alloy
EDAC Inc. 846-040-520-101	1	1	Through Hole	Non Specified - Single Edge	Diallyl Phthalate (DAP)		40	Single	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Green	10 Áin	0.25 Ám	Female	Solder	40	125 °C	-40 °C	Gold	Copper Alloy
EDAC Inc. 846-040-558-107	1	1	Through Hole Right Angle	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Flush Mount M3 Threaded Insert Top Opening	40	Single	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Green	10 Áin	0.25 Ám	Female	Solder	40	125 °C	-40 °C	Gold	Copper Alloy
EDAC Inc. 846-040-500-803	2	2	Through Hole	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Floating Bobbin Top Mount Opening		Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Green	10 Áin	0.25 Ám	Female	Solder Eyelet(s)	40	125 °C	-40 °C	Gold	Copper Alloy	2.95 mm	0.116 in	20	20	20
EDAC Inc. 846-040-522-112	1	1	Through Hole	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Flush Mount Side Opening Unthreaded	40	Single	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Green	10 Áin	0.25 Ám	Female	Solder	40	125 °C	-40 °C	Gold	Copper Alloy	3.25 mm	0.128 "
EDAC Inc. 846-040-559-812	2	2	Through Hole Right Angle	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	Side Mount Opening Unthreaded		Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Green	10 Áin	0.25 Ám	Female	Solder	40	125 °C	-40 °C	Gold	Copper Alloy			20	20	20	3.25 mm	0.128 in
EDAC Inc. 846-040-500-612	1	1	Through Hole	Non Specified - Single Edge	Diallyl Phthalate (DAP)	Side Mount Opening Unthreaded	40	Single	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Green	10 Áin	0.25 Ám	Female	Solder Eyelet(s)	40	125 °C	-40 °C	Gold	Copper Alloy						3.25 mm	0.128 in
EDAC Inc. 846-040-521-607	1	1	Through Hole	Non Specified - Single Edge	Diallyl Phthalate (DAP)	M3 Threaded Insert Top Mount Opening	40	Single	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Green	10 Áin	0.25 Ám	Female	Solder	40	125 °C	-40 °C	Gold	Copper Alloy
EDAC Inc. 846-040-558-608	1	1	Through Hole Right Angle	Non Specified - Single Edge	Diallyl Phthalate (DAP)	4-40 Threaded Insert Top Mount Opening	40	Single	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Green	10 Áin	0.25 Ám	Female	Solder	40	125 °C	-40 °C	Gold	Copper Alloy
EDAC Inc. 846-040-520-602	1	1	Through Hole	Non Specified - Single Edge	Diallyl Phthalate (DAP)		40	Single	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Green	10 Áin	0.25 Ám	Female	Solder	40	125 °C	-40 °C	Gold	Copper Alloy						3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 65.57

Description

General part information

846-040 Series

40 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
