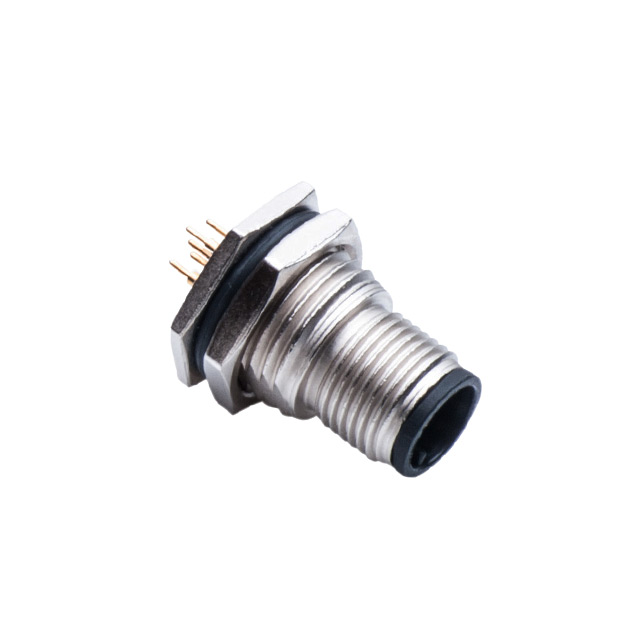

M12A-05PMMP-SF8001

Active

Amphenol LTW

CONN PLUG MALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 5POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-05PMMP-SF8001

Backshell Material, Plating	Copper Alloy
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VAC

Part	Connector Type	Insert Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Primary Material	Voltage Rating	Shell Size - Insert	Orientation	Ingress Protection	Shell Material	Contact Finish - Mating	Shell Finish	Shielding	Backshell Material, Plating	Current Rating (Amps)	Contact Material	Color	Mounting Type
Amphenol LTW M12A-05PMMP-SF8001	Male Pins Receptacle	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	-40 °C	105 ░C	Solder	Metal	60 VAC	M12-5	A	IP68 IP69K	Zinc Alloy	Gold	Nickel	Shielded	Copper Alloy	4 A	Copper Alloy	Silver	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
