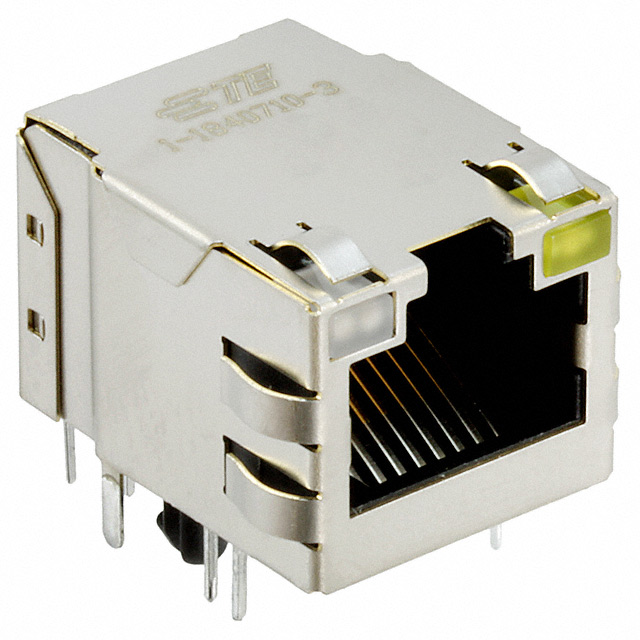

2250015-3

Active

TRP Connector B.V.

CONN JACK 1PORT 1000 BASE-T PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 1000 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1PORT 1000 BASE-T PCB

Part	Number of Cores per Jack	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Shield Material	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Applications	Shielding	Number of Rows	Mounting Type	LED Color	Contact Material	Number of Ports	Connector Type	Tab Direction	Features	Termination	Contact Finish
TRP Connector B.V. 2250015-3	8	0.539 in	13.69 mm	85 °C	-40 °C	90 °	Brass	50 µin	1.27 µm	Thermoplastic	10/100/1000 Base-T, AutoMDIX	Shielded, EMI Finger	1	Through Hole	Green, Orange - Yellow	Phosphor Bronze	1	RJ45	Up	Board Guide	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
