Power Supplies - External/Internal (Off-Board)

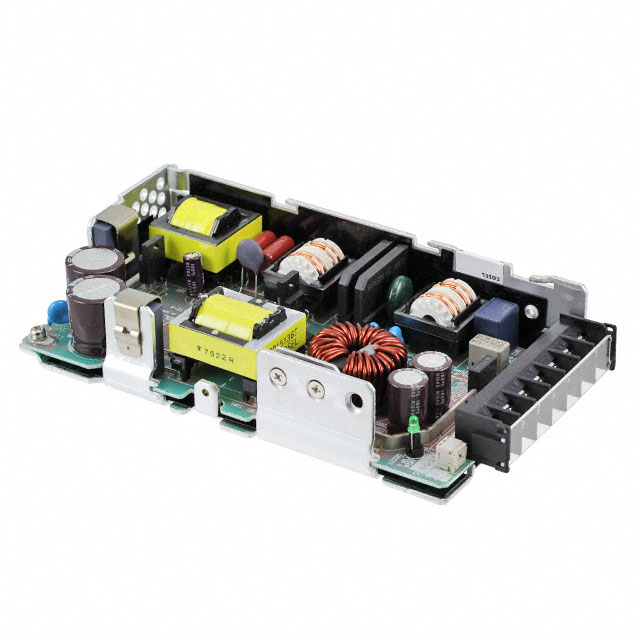

PBA150F-24-G

LTB

Cosel USA, Inc.

AC/DC CONVERTER 24V

Power Supplies - External/Internal (Off-Board)

PBA150F-24-G

LTB

Cosel USA, Inc.

AC/DC CONVERTER 24V

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBA150F-24-G

Applications	ITE (Commercial)
Approval Agency	cURus, TUV, CE
Current - Output 1	6.5 A
Efficiency	88 %
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	71 °C
Operating Temperature (Min)	-10 °C
Size / Dimension Height	3.66 in
Size / Dimension Length	6.61 in
Size / Dimension Width	1.34 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	3 kV
Voltage - Output 1	24 V

PBA150 Series

Switching Power Supplies

...

Part	Minimum Load Required	Mounting Type	Voltage - Isolation	Approval Agency	Number of Outputs	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Voltage - Output 1	Type	Operating Temperature (Min)	Operating Temperature (Max)	Efficiency	Current - Output 1	Applications
Cosel USA, Inc. PBA150F-36-CVN	No	Chassis Mount	3 kV	CE cURus TUV	1	3.66 in	6.61 in	1.34 in	85 VAC	264 V	36 V	Enclosed	-10 °C	71 °C	88 %	4.3 A	ITE (Commercial)
Cosel USA, Inc. PBA150F-3R3-CT	No	Chassis Mount	3 kV	CE cURus TUV	1	3.66 in	6.61 in	1.34 in	85 VAC	264 V	3.3 V	Open Frame	-10 °C	71 °C	82 %	30 A	ITE (Commercial)
Cosel USA, Inc. PBA150F-3R3-R	No	Chassis Mount	3 kV	CE cURus TUV	1	3.66 in	6.61 in	1.34 in	85 VAC	264 V	3.3 V	Open Frame	-10 °C	71 °C	82 %	30 A	ITE (Commercial)
Cosel USA, Inc. PBA150F-24-CR	No	Chassis Mount	3 kV	CE cURus TUV	1	3.66 in	6.61 in	1.34 in	85 VAC	264 V	24 V	Open Frame	-10 °C	71 °C	88 %	6.5 A	ITE (Commercial)
Cosel USA, Inc. PBA150F-15-RT	No	Chassis Mount	3 kV	CE cURus TUV	1	3.66 in	6.61 in	1.34 in	85 VAC	264 V	15 V	Open Frame	-10 °C	71 °C	87 %	10 A	ITE (Commercial)
Cosel USA, Inc. PBA150F-5-KN	No	Chassis Mount	3 kV	CE cURus TUV	1	3.66 in	6.61 in	1.34 in	85 VAC	264 V	5 V	Enclosed	-10 °C	71 °C	86 %	30 A	ITE (Commercial)
Cosel USA, Inc. PBA150F-24-VN	No	Chassis Mount	3 kV	CE cURus TUV	1	3.66 in	6.61 in	1.34 in	85 VAC	264 V	24 V	Enclosed	-10 °C	71 °C	88 %	6.5 A	ITE (Commercial)
Cosel USA, Inc. PBA150F-24-G	No	Chassis Mount	3 kV	CE cURus TUV	1	3.66 in	6.61 in	1.34 in	85 VAC	264 V	24 V	Open Frame	-10 °C	71 °C	88 %	6.5 A	ITE (Commercial)
Cosel USA, Inc. PBA150F-12-CR	No	Chassis Mount	3 kV	CE cURus TUV	1	3.66 in	6.61 in	1.34 in	85 VAC	264 V	12 V	Open Frame	-10 °C	71 °C	86 %	13 A	ITE (Commercial)
Cosel USA, Inc. PBA150F-24-CVN	No	Chassis Mount	3 kV	CE cURus TUV	1	3.66 in	6.61 in	1.34 in	85 VAC	264 V	24 V	Enclosed	-10 °C	71 °C	88 %	6.5 A	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Box	1	$ 148.62	<1d

CAD

3D models and CAD resources for this part

Description

General part information

PBA150 Series

Switching Power Supplies

Documents

Technical documentation and resources

PBA150F-24-G | Datasheet
