821-22-046-10-004101

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 46POS PCB

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 46POS PCB

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Rows	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Material	Number of Contacts	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 821-22-051-10-002101	1	Piston	Through Hole	2.54 mm	0.1 in	Copper Alloy	51	Gold	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 821-22-050-10-000101	1	Piston	Through Hole	2.54 mm	0.1 in	Copper Alloy	50	Gold	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 821-22-062-10-002101	1	Piston	Through Hole	2.54 mm	0.1 in	Copper Alloy	62	Gold	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 821-22-013-10-001101	1	Piston	Through Hole	2.54 mm	0.1 in	Copper Alloy	13	Gold	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 821-22-027-10-001101	1	Piston	Through Hole	2.54 mm	0.1 in	Copper Alloy	27	Gold	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 821-22-046-10-004101	1	Piston	Through Hole	2.54 mm	0.1 in	Copper Alloy	46	Gold	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 821-22-054-10-003101	1	Piston	Through Hole	2.54 mm	0.1 in	Copper Alloy	54	Gold	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 821-22-053-10-000101	1	Piston	Through Hole	2.54 mm	0.1 in	Copper Alloy	53	Gold	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 821-22-014-10-003101	1	Piston	Through Hole	2.54 mm	0.1 in	Copper Alloy	14	Gold	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 821-22-019-10-000101	1	Piston	Through Hole	2.54 mm	0.1 in	Copper Alloy		Gold	0.51 µm	20 µin	19

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

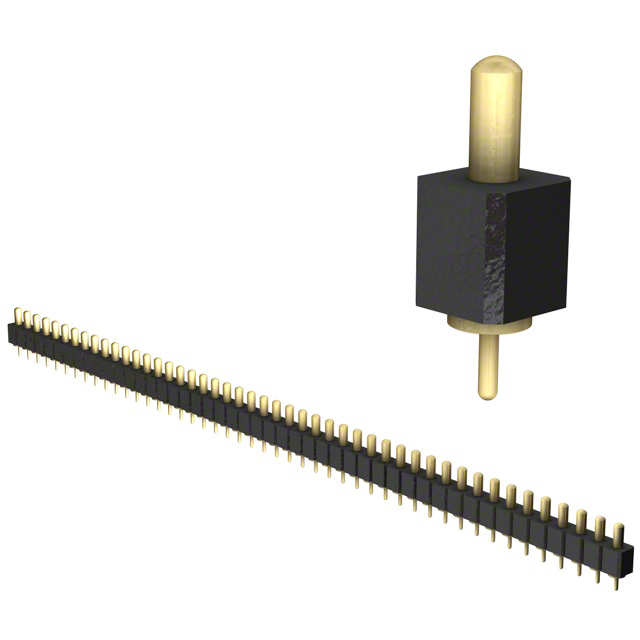

46 Position Spring Piston Connector Through Hole
