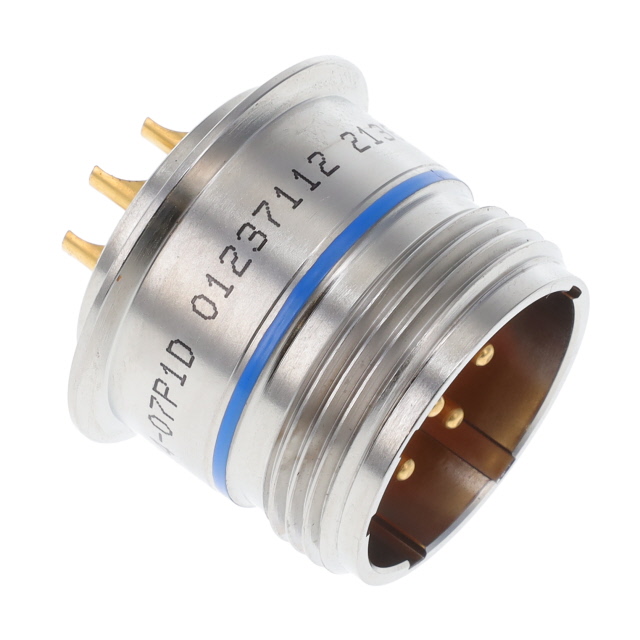

BTY-1414-07P1D

Active

Amphenol Aerospace Operations

CONN RCPT MALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BTY-1414-07P1D

Applications	Aerospace
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	13 A
Ingress Protection	Environment Resistant
Number of Positions	7
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-83723 Series III
Shell Material	Stainless Steel
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	7
Shielding	Unshielded
Voltage Rating	600 VAC

Part	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Color	Applications	Orientation	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Voltage Rating	Contact Finish - Mating	Shell Material	Shielding	Current Rating (Amps)	Number of Positions	Qualification	Primary Material	Shell Size - Insert
Amphenol Aerospace Operations BTY-1414-07P1D	Male Pins Receptacle	1.27 µm	50 µin	Environment Resistant	Silver	Aerospace	N	14	7	600 VAC	Gold	Stainless Steel	Unshielded	13 A	7	MIL-DTL-83723 Series III	Metal
Amphenol Aerospace Operations BTY-1408-03P1D	Male Pins Receptacle	1.27 µm	50 µin	Environment Resistant	Silver	Aerospace	N			600 VAC	Gold	Stainless Steel	Unshielded	7.5 A		MIL-DTL-83723 Series III	Metal	8-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
