892-006-558-104

Active

EDAC Inc.

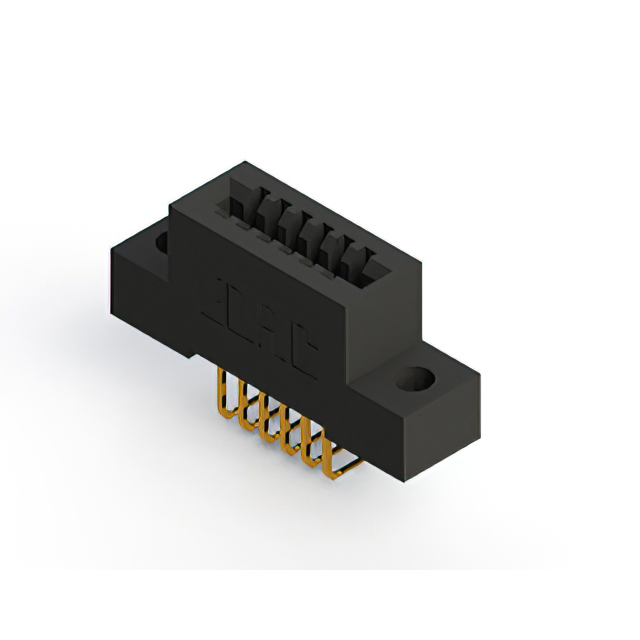

CONN EDGE SINGLE FML 6POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-006-558-104

Active

EDAC Inc.

CONN EDGE SINGLE FML 6POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-006-558-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions/Bay/Row [custom]	6
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

892-006 Series

Part	Termination Rows	Number of Positions/Bay/Row [custom]	Contact Finish	Flange Feature	Contact Type	Mounting Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Gender	Material - Insulation	Number of Rows	Termination	Number of Positions	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-006-520-107	1	6	Gold	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Through Hole	2.54 mm	0.1 in	125 °C	-40 °C	Single	Copper Alloy	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1	Solder	6	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge
EDAC Inc. 892-006-558-104	1	6	Gold	Flush Mount Top Opening Unthreaded	Cantilever	Through Hole Right Angle	2.54 mm	0.1 in	125 °C	-40 °C	Single	Copper Alloy	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1	Solder	6	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	3.96 mm	0.156 in
EDAC Inc. 892-006-541-108	1	6	Gold	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Through Hole	2.54 mm	0.1 in	125 °C	-40 °C	Single	Copper Alloy	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1	Wire Wrap	6	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge
EDAC Inc. 892-006-524-102	1	6	Gold	Flush Mount Top Opening Unthreaded	Cantilever	Through Hole	2.54 mm	0.1 in	125 °C	-40 °C	Single	Copper Alloy	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1	Solder	6	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	3.25 mm	0.128 "
EDAC Inc. 892-006-542-101	1	6	Gold		Cantilever	Through Hole	2.54 mm	0.1 in	125 °C	-40 °C	Single	Copper Alloy	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1	Wire Wrap	6	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge
EDAC Inc. 892-006-542-102	1	6	Gold	Flush Mount Top Opening Unthreaded	Cantilever	Through Hole	2.54 mm	0.1 in	125 °C	-40 °C	Single	Copper Alloy	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1	Wire Wrap	6	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	3.25 mm	0.128 "
EDAC Inc. 892-006-524-104	1	6	Gold	Flush Mount Top Opening Unthreaded	Cantilever	Through Hole	2.54 mm	0.1 in	125 °C	-40 °C	Single	Copper Alloy	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1	Solder	6	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	3.96 mm	0.156 in
EDAC Inc. 892-006-544-102	1	6	Gold	Flush Mount Top Opening Unthreaded	Cantilever	Through Hole	2.54 mm	0.1 in	125 °C	-40 °C	Single	Copper Alloy	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1	Wire Wrap	6	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	3.25 mm	0.128 "
EDAC Inc. 892-006-558-102	1	6	Gold	Flush Mount Top Opening Unthreaded	Cantilever	Through Hole Right Angle	2.54 mm	0.1 in	125 °C	-40 °C	Single	Copper Alloy	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1	Solder	6	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	3.25 mm	0.128 "
EDAC Inc. 892-006-559-102	1	6	Gold	Flush Mount Top Opening Unthreaded	Cantilever	Through Hole Right Angle	2.54 mm	0.1 in	125 °C	-40 °C	Single	Copper Alloy	10 Áin	0.25 Ám	Female	Polyphenylene Sulfide (PPS)	1	Solder	6	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 62.95

Description

General part information

892-006 Series

6 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
