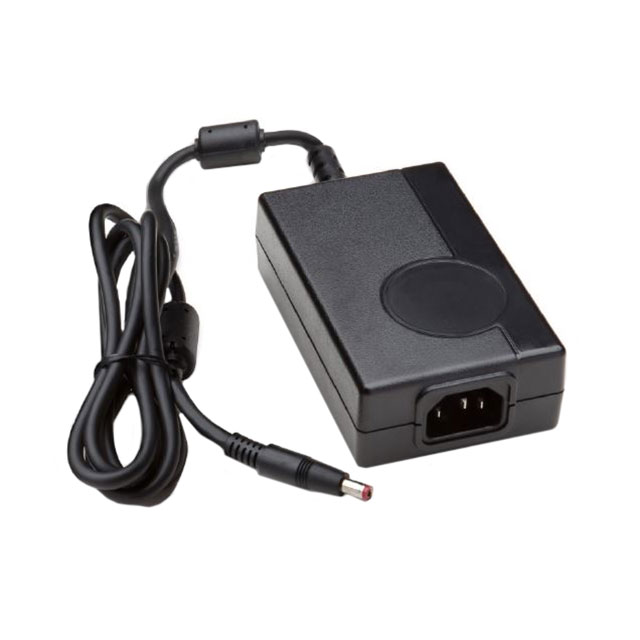

TE60A2403F01

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 24V 65W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 24V 65W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TE60A2403F01	TE60A2403 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, CSA, UL, CE	CB, CSA, UL, CE
Cord Length	45.3 in	45.3 in
Cord Length	1.15 m	1.15 m
Current - Output (Max) [Max]	2.7 A	2.7 A
Efficiency	Level VI	Level VI
Form	Desktop (Class I)	Desktop (Class I), Desktop (Class II)
Input Connector	IEC 320-C14	IEC 320-C14, IEC 320-C8
Input Type	Cord	Cord
No Load Power Consumption	210 mW	210 mW
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-20 C	-20 C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	65 W	65 W
Region Utilized	International	International
Size / Dimension [x]	108 mm	108 mm
Size / Dimension [x]	4.25 in	4.25 in
Size / Dimension [y]	67.9 mm	67.9 mm
Size / Dimension [y]	2.67 in	2.67 in
Size / Dimension [z]	1.29 in	1.29 in
Size / Dimension [z]	32.7 mm	32.7 mm
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	24 V	24 V
Weight	0.882 lb	0.882 lb
Weight	400.07 g	400.07 g

AC/DC DESKTOP ADAPTER 24V 65W

Part	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Form	No Load Power Consumption	Efficiency	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Output	Polarization	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Region Utilized	Input Connector	Weight	Weight	Cord Length	Cord Length	Applications
SL POWER / Advanced Energy TE60A2403F01	CB, CE, CSA, UL	50 °C	-20 C	Cord	Desktop (Class I)	210 mW	Level VI	2.7 A	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	65 W	24 V	Positive Center	1.29 in	67.9 mm	32.7 mm	108 mm	2.67 in	4.25 in	International	IEC 320-C14	0.882 lb	400.07 g	45.3 in	1.15 m	ITE (Commercial)
SL POWER / Advanced Energy TE60A2403N01	CB, CE, CSA, UL	50 °C	-20 C	Cord	Desktop (Class II)	210 mW	Level VI	2.7 A	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	90 VAC	264 VAC	65 W	24 V	Positive Center	1.29 in	67.9 mm	32.7 mm	108 mm	2.67 in	4.25 in	International	IEC 320-C8	0.882 lb	400.07 g	45.3 in	1.15 m	ITE (Commercial)
