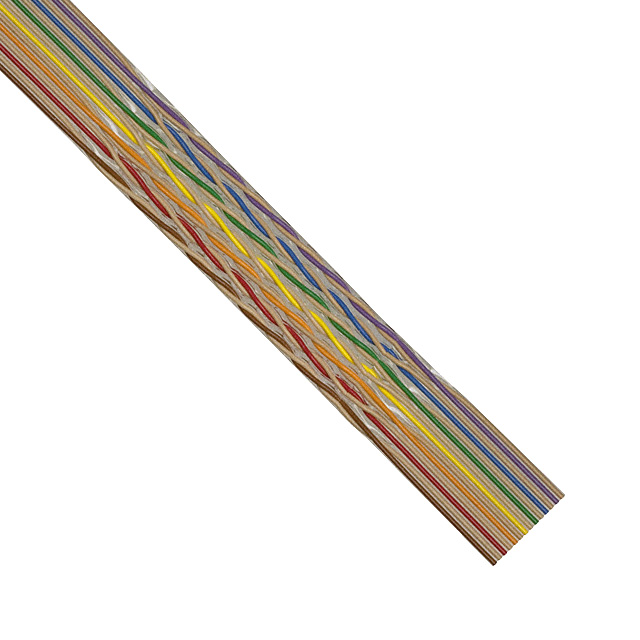

1700/14EK

Active

3M (TC)

CBL RIBN 14COND TWIST-PAIR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1700/14EK

Active

3M (TC)

CBL RIBN 14COND TWIST-PAIR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1700/14EK

Cable Type	Flat Twisted Pair
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Insulation Resistance	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length	91.44 m
Length	300 ft
Number of Conductors	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 20462
Ribbon Thickness	0.08 in
Ribbon Thickness	2.03 mm
Ribbon Width [x]	0.7 in
Ribbon Width [x]	17.78 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

1700 Series

...

Part	Ribbon Width [y]	Ribbon Width [y]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Wire Gauge	Ribbon Thickness	Ribbon Thickness	Voltage	Jacket Color	Length	Length	Length [x]	Length [x]	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Resistance	Conductor Material	Pitch [x]	Pitch [x]	Features	Cable Type	Shielding	Ratings	Shelf Life	Usage	Backing, Carrier	Shelf Life Start	Temperature Range	Temperature Range	Tape Type	Length	Color	Width	Width	Width	Temperature Range [Min]	Temperature Range [Max]	Width [x]	Width [x]	Adhesive	Ribbon Width	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width	Number of Conductors
3M (TC) 1700/34 100SF	1.7 in	43.18 mm	7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	0.08 in	2.03 mm	300 V	Multiple	25 ft	7.62 m	100 ft	30.48 m	34	-20 C	105 ░C	1 GOhms	Copper Tinned	0.05 in	1.27 mm	Splice Free	Flat Twisted Pair	Unshielded	UL Style 20462
3M (TC) 1700C-GREEN-3/4X66'											66 ft	20.1 m														60 Months	General Purpose	PVC (Poly Vinyl Chloride)	Date of Manufacture	80 °C	176 °F	Electrical	22 yds	Green	0.75 in	19.05 mm	0.75 in
3M (TC) 1700-1X66FT											66 ft	20.1 m														60 Months	General Purpose	PVC (Poly Vinyl Chloride)	Date of Manufacture			Electrical	22 yds	Black				0 °C	80 °C	25.4 mm	1 in	Rubber
3M (TC) 1700/20 100SF			7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	0.08 in	2.03 mm	300 V	Multiple	25 ft 50 ft	7.62 m 15.24 m	100 ft	30.48 m	20	-20 C	105 ░C	1 GOhms	Copper Tinned	0.05 in	1.27 mm	Splice Free	Flat Twisted Pair	Unshielded	UL Style 20462																		1 in	25.4 mm
3M (TC) 1700/14EK			7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	0.08 in	2.03 mm	300 V	Multiple	300 ft	91.44 m			14	-20 C	105 ░C	1 GOhms	Copper Tinned	0.05 in	1.27 mm		Flat Twisted Pair	Unshielded	UL Style 20462																				0.7 in	17.78 mm
3M (TC) 1700/20BA			7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	0.08 in	2.03 mm	300 V	Multiple			100 ft	30.48 m	20	-20 C	105 ░C	1 GOhms	Copper Tinned	0.05 in	1.27 mm		Flat Twisted Pair	Unshielded	UL Style 20462																		1 in	25.4 mm
3M (TC) 1700/60 100SF			7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	0.08 in	2.03 mm	300 V	Multiple	50 ft	15.24 m	10 ft 100 ft	3.05 m 30.48 m	60	-20 C	105 ░C	1 GOhms	Copper Tinned	0.05 in	1.27 mm	Splice Free	Flat Twisted Pair	Unshielded	UL Style 20462																		76.2 mm				3 in
3M (TC) 1700/34EL 299'	1.7 in	43.18 mm	7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	0.08 in	2.03 mm	300 V	Multiple	299 ft	91.14 m			34	-20 C	105 ░C	1 GOhms	Copper Tinned	0.05 in	1.27 mm		Flat Twisted Pair	Unshielded	UL Style 20462
3M (TC) 1700/34EN 300'	1.7 in	43.18 mm	7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	0.08 in	2.03 mm	300 V	Multiple	300 ft	91.44 m			34	-20 C	105 ░C	1 GOhms	Copper Tinned	0.05 in	1.27 mm		Flat Twisted Pair	Unshielded	UL Style 20462
3M (TC) 1700/30 200			7	36 AWG	Poly-Vinyl Chloride (PVC)	28 AWG	0.08 in	2.03 mm	300 V	Multiple	200 '	60.96 m				-20 C	105 ░C	1 GOhms	Copper Tinned	0.05 in	1.27 mm		Flat Twisted Pair	Unshielded	UL Style 20462																							30 (15 Pair Twisted)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	4500	$ 0.60

Description

General part information

1700 Series

Flat Ribbon Cable Multiple 14 (7 Pair Twisted) Conductors 0.050" (1.27mm) Flat Twisted Pair 300.0' (91.44m)
