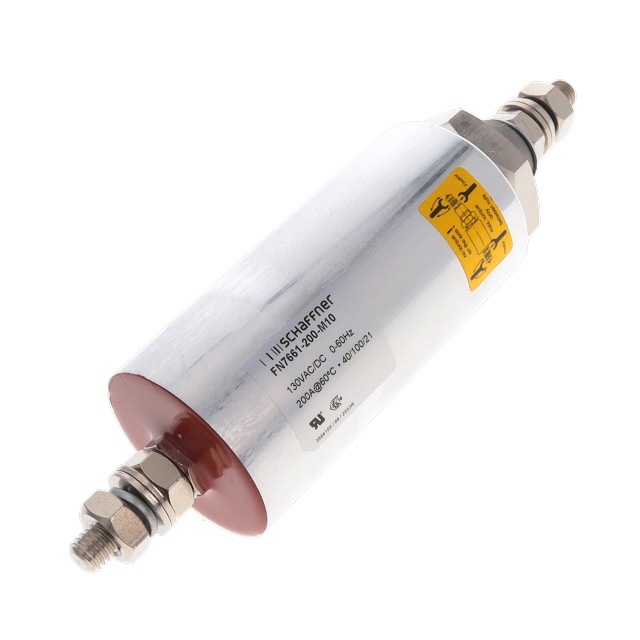

FN7661-200-M10
ActiveTE Connectivity Raychem Cable Protection
FEED THROUGH CAPACITOR, 1 FUNCTION(S), 130V, 200A, ROHS COMPLIANT PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN7661-200-M10
ActiveTE Connectivity Raychem Cable Protection
FEED THROUGH CAPACITOR, 1 FUNCTION(S), 130V, 200A, ROHS COMPLIANT PACKAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN7661-200-M10 |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Current | 200 A |
| ESD Protection | False |
| Filter Order | 3 |
| Mounting Type | Bolt Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Axial - Threaded Terminals |
| Resistance - Channel (Ohms) [custom] | 0.00024 Ohms |
| Size / Dimension [diameter] | 2.126 in |
| Size / Dimension [diameter] | 54 mm |
| Size / Dimension [x] | 5.906 in |
| Size / Dimension [x] | 150 mm |
| Technology | LC (Pi) |
| Type | Low Pass |
| Values | 124 nH, 0.47 µF |
| Voltage - Rated | 130 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 250.43 | |
| 10 | $ 208.69 | |||
| 40 | $ 194.79 | |||
Description
General part information
FN7661 Series
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 124nH, C = 0.47µF 200 A Axial - Threaded Terminals
