Q-1X0180008003M

Active

Amphenol Custom Cable

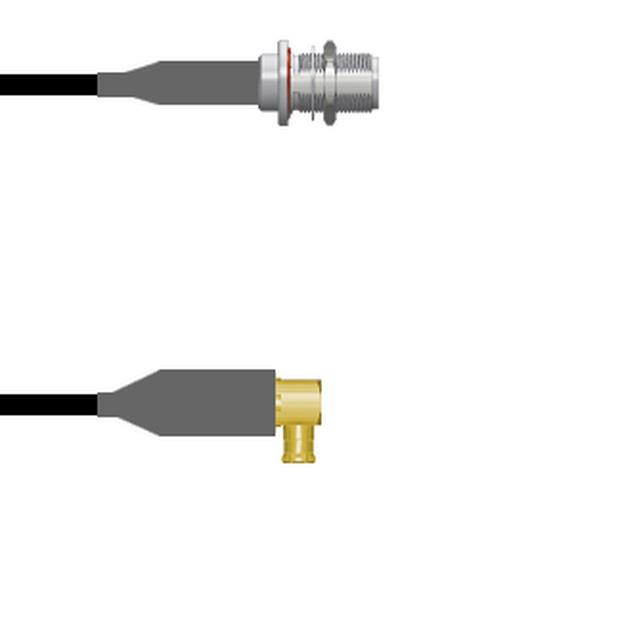

CBL ASSY MCX-NTYPE PLG-JACK 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1X0180008003M

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PLG-JACK 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1X0180008003M

1st Connector	Right Angle, MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1X0180 Series

Part	2nd Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	Cable Type	1st Contact Gender	Style	1st Connector	Features	Color	2nd Connector Mounting Feature	Length	Length	Length	2nd Contact Gender	1st Connector Mounting Type	2nd Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-1X0180008108i	Panel Mount	50 Ohms	6000 MHz	RG-58	Male	MCX to N-Type	MCX Plug Right Angle	Shielded	Black	Bulkhead - Front Side Nut	2.7 m	9 ft	108 in	Female	Free Hanging (In-Line)	N-Type Jack
Amphenol Custom Cable Q-1X0180008003M	Panel Mount	50 Ohms	6000 MHz	RG-58	Male	MCX to N-Type	MCX Plug Right Angle	Shielded	Black	Bulkhead - Front Side Nut	3 m	9.8 '	118.1 in	Female	Free Hanging (In-Line)	N-Type Jack
Amphenol Custom Cable Q-1X0180008012i	Panel Mount	50 Ohms	6000 MHz	RG-58	Male	MCX to N-Type	MCX Plug Right Angle	Shielded	Black	Bulkhead - Front Side Nut	304.8 mm		12 "	Female	Free Hanging (In-Line)	N-Type Jack
Amphenol Custom Cable Q-1X0180008009i	Panel Mount	50 Ohms	6000 MHz	RG-58	Male	MCX to N-Type	MCX Plug Right Angle	Shielded	Black	Bulkhead - Front Side Nut	228.6 mm		9 "	Female	Free Hanging (In-Line)	N-Type Jack
Amphenol Custom Cable Q-1X0180008001M	Panel Mount	50 Ohms	6000 MHz	RG-58	Male	MCX to N-Type	MCX Plug Right Angle	Shielded	Black	Bulkhead - Front Side Nut	1 m	3.3 ft	39.4 in	Female	Free Hanging (In-Line)	N-Type Jack
Amphenol Custom Cable Q-1X0180008072i	Panel Mount	50 Ohms	6000 MHz	RG-58	Male	MCX to N-Type	MCX Plug Right Angle	Shielded	Black	Bulkhead - Front Side Nut	1.8 m	6 ft	72 in	Female	Free Hanging (In-Line)	N-Type Jack
Amphenol Custom Cable Q-1X01800080.5M	Panel Mount	50 Ohms	6000 MHz	RG-58	Male	MCX to N-Type	MCX Plug Right Angle	Shielded	Black	Bulkhead - Front Side Nut	50 cm		19.69 "	Female	Free Hanging (In-Line)	N-Type Jack
Amphenol Custom Cable Q-1X0180008084i	Panel Mount	50 Ohms	6000 MHz	RG-58	Male	MCX to N-Type	MCX Plug Right Angle	Shielded	Black	Bulkhead - Front Side Nut	2.1 m	7 ft	84 in	Female	Free Hanging (In-Line)	N-Type Jack
Amphenol Custom Cable Q-1X0180008060i	Panel Mount	50 Ohms	6000 MHz	RG-58	Male	MCX to N-Type	MCX Plug Right Angle	Shielded	Black	Bulkhead - Front Side Nut	1.5 m	5 ft	5 '	Female	Free Hanging (In-Line)	N-Type Jack
Amphenol Custom Cable Q-1X0180008018i	Panel Mount	50 Ohms	6000 MHz	RG-58	Male	MCX to N-Type	MCX Plug Right Angle	Shielded	Black	Bulkhead - Front Side Nut				Female	Free Hanging (In-Line)	N-Type Jack	457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 100.20
		25	$ 93.19
		50	$ 86.17
		100	$ 80.16
		250	$ 75.15

Description

General part information

Q-1X0180 Series

Cable Assembly Coaxial MCX to N-Type RG-58 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
