UDN2916B

Obsolete

Allegro MicroSystems

IC MTRDRV BIPLR 4.75-5.25V 24DIP

Search across all available documentation for this part.

Obsolete

Allegro MicroSystems

IC MTRDRV BIPLR 4.75-5.25V 24DIP

Technical Specifications

Parameters and characteristics for this part

Specification	UDN2916B

Applications	General Purpose
Current - Output	750 mA
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Brushed DC
Motor Type - Stepper	Bipolar
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (4)

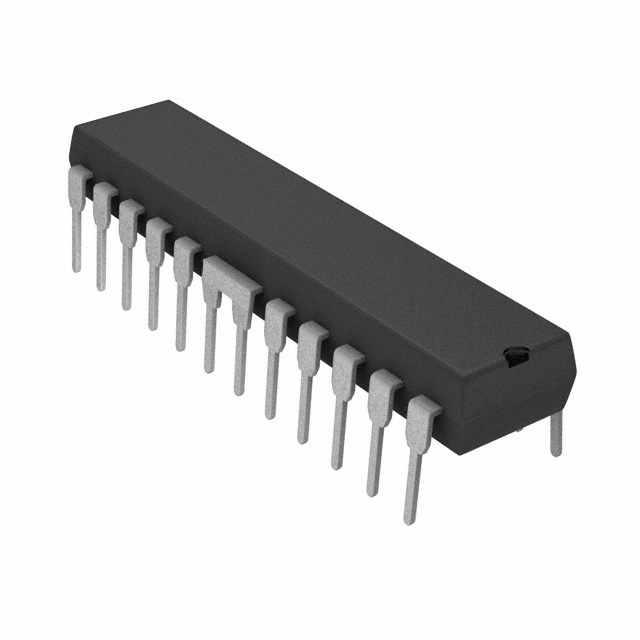

Package / Case	24-PowerDIP
Package / Case	7.62 mm
Package / Case	0.3 in
Supplier Device Package	24-DIP
Technology	Bipolar
Voltage - Load [Max]	45 V
Voltage - Load [Min]	10 V
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

IC MTRDRV BIPLR 4.75-5.25V 24DIP

Part	Motor Type - AC, DC	Operating Temperature [Max]	Operating Temperature [Min]	Function	Voltage - Load [Min]	Voltage - Load [Max]	Output Configuration	Package / Case	Package / Case	Package / Case	Applications	Current - Output	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Motor Type - Stepper	Technology	Supplier Device Package	Mounting Type
Allegro MicroSystems UDN2916B	Brushed DC	150 °C	-20 °C	Driver - Fully Integrated, Control and Power Stage	10 V	45 V	Half Bridge (4)	24-PowerDIP	7.62 mm	0.3 in	General Purpose	750 mA	Parallel	4.75 V	5.25 V	Bipolar	Bipolar	24-DIP	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar Motor Driver Bipolar Parallel 24-DIP
