Q-0E0550008.75M

Active

Amphenol Custom Cable

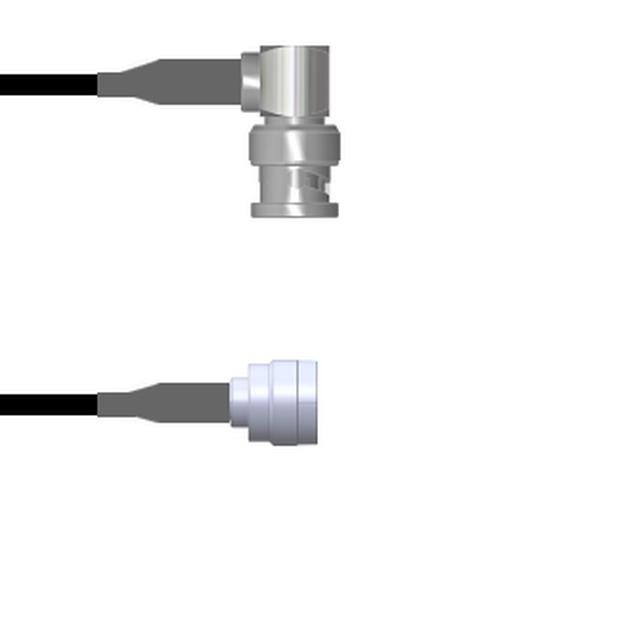

CBL ASSY BNC-TNC PLUG-PLG 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0E0550008.75M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLUG-PLG 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0E0550008.75M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0E0550 Series

Part	Features	2nd Connector Mounting Type	1st Connector Mounting Type	1st Contact Gender	Overall Impedance	Cable Type	1st Connector	2nd Connector	Length	Length	2nd Contact Gender	Style	Color	Frequency - Max [Max]	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0E0550008.75M	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	RG-58	BNC Plug Right Angle	TNC Plug	29.53 "	750 mm	Male	BNC to TNC	Black	4 GHz
Amphenol Custom Cable Q-0E0550008072i	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	RG-58	BNC Plug Right Angle	TNC Plug	72 in	1.8 m	Male	BNC to TNC	Black	4 GHz	6 ft
Amphenol Custom Cable Q-0E0550008003M	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	RG-58	BNC Plug Right Angle	TNC Plug	118.1 in	3 m	Male	BNC to TNC	Black	4 GHz	9.8 '
Amphenol Custom Cable Q-0E0550008002M	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	RG-58	BNC Plug Right Angle	TNC Plug	78.7 in	2 m	Male	BNC to TNC	Black	4 GHz	6.6 ft
Amphenol Custom Cable Q-0E05500081.5M	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	RG-58	BNC Plug Right Angle	TNC Plug	59.1 in	1.5 m	Male	BNC to TNC	Black	4 GHz	4.9 ft
Amphenol Custom Cable Q-0E0550008006i	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	RG-58	BNC Plug Right Angle	TNC Plug	6 in	152.4 mm	Male	BNC to TNC	Black	4 GHz
Amphenol Custom Cable Q-0E0550008048i	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	RG-58	BNC Plug Right Angle	TNC Plug	48 in	1200 mm	Male	BNC to TNC	Black	4 GHz	4 ft
Amphenol Custom Cable Q-0E0550008001M	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	RG-58	BNC Plug Right Angle	TNC Plug	39.4 in	1 m	Male	BNC to TNC	Black	4 GHz	3.3 ft
Amphenol Custom Cable Q-0E0550008018i	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	RG-58	BNC Plug Right Angle	TNC Plug			Male	BNC to TNC	Black	4 GHz		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0E05500082.5M	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	50 Ohms	RG-58	BNC Plug Right Angle	TNC Plug	98.4 in	2.5 m	Male	BNC to TNC	Black	4 GHz	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.59
		25	$ 80.01
		50	$ 78.43
		100	$ 76.85
		250	$ 75.27

Description

General part information

Q-0E0550 Series

Cable Assembly Coaxial BNC to TNC RG-58 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
