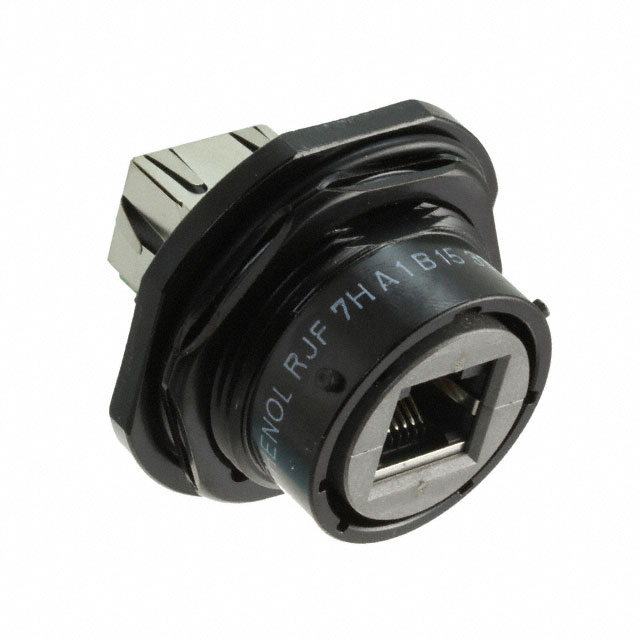

RJF7HA1B
ActiveMcGill Microwave Systems
IN-LINE ADAPTER, HERMETIC, RJ45, RJ45, ADAPTER, IN-LINE, RJF SERIES, JACK, 8 POSITIONS
RJF7HA1B
ActiveMcGill Microwave Systems
IN-LINE ADAPTER, HERMETIC, RJ45, RJ45, ADAPTER, IN-LINE, RJF SERIES, JACK, 8 POSITIONS
Description
General part information
RJF7 Series
Jack Modular Connector 8p8c Straight Cat5e
Technical Specifications
Parameters and characteristics for this part
| Specification | RJF7HA1B |
|---|---|
| Connector Type | Jack |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Mounting Type | Bulkhead - Front Side Nut, Panel Mount |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Straight |
| Ratings | Cat5e |
| Tab Direction | User Selectable |
