10129382-906004BLF

Active

Amphenol ICC (FCI)

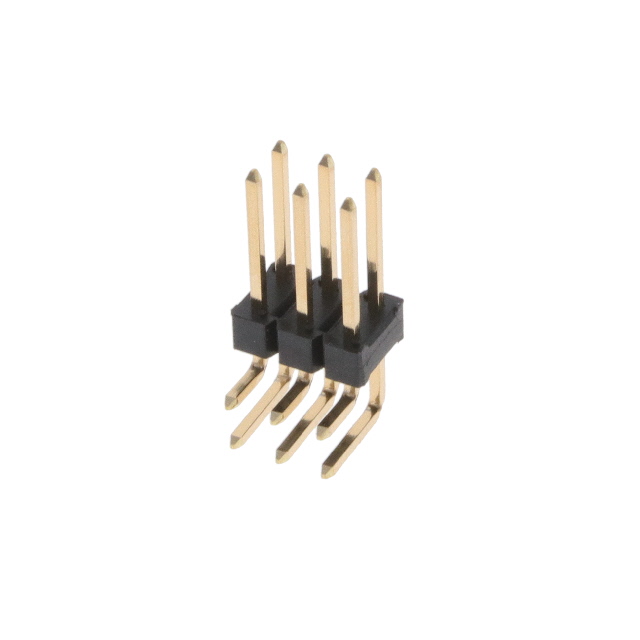

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentseconostik_productpresentation Other Related Document Datasheet +1

10129382-906004BLF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Documentseconostik_productpresentation Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10129382-906004BLF

Applications	Industrial, Medical, General Purpose, Telecommunications
Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

10129382 Series

Part	Insulation Color	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Style	Number of Positions Loaded	Contact Finish - Mating	Shrouding	Contact Type	Insulation Material	Connector Type	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Contact Shape	Material Flammability Rating	Termination	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating
Amphenol ICC (FCI) 10129382-906004BLF	Black	3 A	0.09 "	2.29 mm	6	2.54 mm	0.1 in	0.318 "	8.08 mm	1 µin	0.025 µm	Copper Alloy	Board to Board Cable	All	Gold	Unshrouded	Male Pin	Thermoplastic	Cuttable Header	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Through Hole Right Angle	General Purpose Industrial Medical Telecommunications	Square	UL94 V-0	Solder	2
Amphenol ICC (FCI) 10129382-912003BLF	Black	3 A			12	2.54 mm	0.1 in	0.318 "	8.08 mm	1 µin	0.025 µm	Copper Alloy	Board to Board Cable	All	Gold	Unshrouded	Male Pin	Thermoplastic	Cuttable Header	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Through Hole Right Angle	General Purpose Industrial Medical Telecommunications	Square	UL94 V-0	Solder	2	0.12 in	3.05 mm
Amphenol ICC (FCI) 10129382-950001BLF	Black	3 A			50	2.54 mm	0.1 in	0.23 in		1 µin	0.025 µm	Copper Alloy	Board to Board Cable	All	Gold	Unshrouded	Male Pin	Thermoplastic	Cuttable Header	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Through Hole Right Angle	General Purpose Industrial Medical Telecommunications	Square	UL94 V-0	Solder	2	0.12 in	3.05 mm	5.84 mm
Amphenol ICC (FCI) 10129382-930003BLF	Black	3 A			30	2.54 mm	0.1 in	0.318 "	8.08 mm	1 µin	0.025 µm	Copper Alloy	Board to Board Cable	All	Gold	Unshrouded	Male Pin	Thermoplastic	Cuttable Header	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Through Hole Right Angle	General Purpose Industrial Medical Telecommunications	Square	UL94 V-0	Solder	2	0.12 in	3.05 mm
Amphenol ICC (FCI) 10129382-972002BLF	Black	3 A	0.09 "	2.29 mm	72	2.54 mm	0.1 in	0.23 in		1 µin	0.025 µm	Copper Alloy	Board to Board Cable	All	Gold	Unshrouded	Male Pin	Thermoplastic	Cuttable Header	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Through Hole Right Angle	General Purpose Industrial Medical Telecommunications	Square	UL94 V-0	Solder	2			5.84 mm
Amphenol ICC (FCI) 10129382-972003BLF	Black	3 A			72	2.54 mm	0.1 in	0.318 "	8.08 mm	1 µin	0.025 µm	Copper Alloy	Board to Board Cable	All	Gold	Unshrouded	Male Pin	Thermoplastic	Cuttable Header	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Through Hole Right Angle	General Purpose Industrial Medical Telecommunications	Square	UL94 V-0	Solder	2	0.12 in	3.05 mm
Amphenol ICC (FCI) 10129382-950003BLF	Black	3 A			50	2.54 mm	0.1 in	0.318 "	8.08 mm	1 µin	0.025 µm	Copper Alloy	Board to Board Cable	All	Gold	Unshrouded	Male Pin	Thermoplastic	Cuttable Header	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Through Hole Right Angle	General Purpose Industrial Medical Telecommunications	Square	UL94 V-0	Solder	2	0.12 in	3.05 mm
Amphenol ICC (FCI) 10129382-932001BLF	Black	3 A				2.54 mm	0.1 in	0.23 in		1 µin	0.025 µm	Copper Alloy	Board to Board Cable	All	Gold	Unshrouded	Male Pin	Thermoplastic	Cuttable Header	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Through Hole Right Angle	General Purpose Industrial Medical Telecommunications	Square	UL94 V-0	Solder	2	0.12 in	3.05 mm	5.84 mm
Amphenol ICC (FCI) 10129382-906002BLF	Black	3 A	0.09 "	2.29 mm	6	2.54 mm	0.1 in	0.23 in		1 µin	0.025 µm	Copper Alloy	Board to Board Cable	All	Gold	Unshrouded	Male Pin	Thermoplastic	Cuttable Header	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Through Hole Right Angle	General Purpose Industrial Medical Telecommunications	Square	UL94 V-0	Solder	2			5.84 mm
Amphenol ICC (FCI) 10129382-940002BLF	Black	3 A	0.09 "	2.29 mm	40	2.54 mm	0.1 in	0.23 in		1 µin	0.025 µm	Copper Alloy	Board to Board Cable	All	Gold	Unshrouded	Male Pin	Thermoplastic	Cuttable Header	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Through Hole Right Angle	General Purpose Industrial Medical Telecommunications	Square	UL94 V-0	Solder	2			5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.18
		10	$ 0.14
		100	$ 0.10
		500	$ 0.09
		1000	$ 0.08
		5000	$ 0.07

Description

General part information

10129382 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
