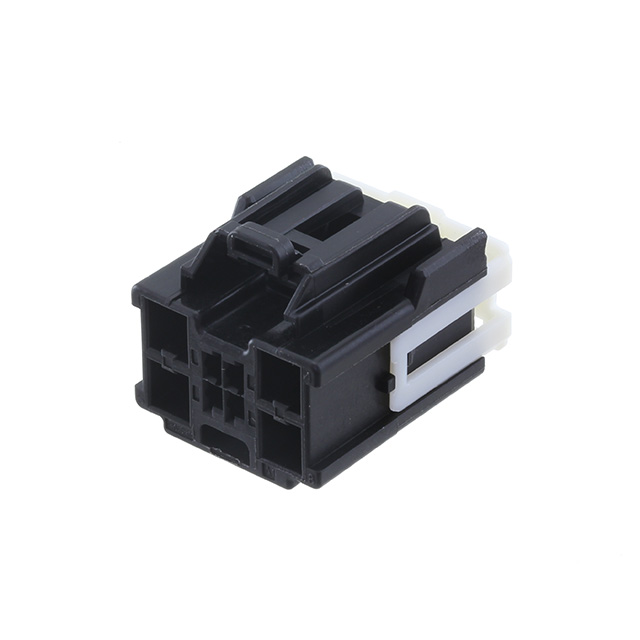

1456471-1

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 8POS UNSEALED

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 8POS UNSEALED

Technical Specifications

Parameters and characteristics for this part

Specification	1456471-1

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Terminal Position Lock (TPA)
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

Part	Mounting Type	Fastening Type	Contact Termination	Contact Type	Features	Note	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Color	Connector Type
TE Connectivity Raychem Cable Protection 1456471-1	Free Hanging (In-Line)	Latch Lock	Crimp	Female Socket	Terminal Position Lock (TPA)	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	85 °C	-40 °C	8	Black	Plug
TE Connectivity Raychem Cable Protection 1456471-4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 + 4 Power) Rectangular Connectors - Housings Plug Black
