W17984-7PG-P-3ES

Active

Conxall/Switchcraft

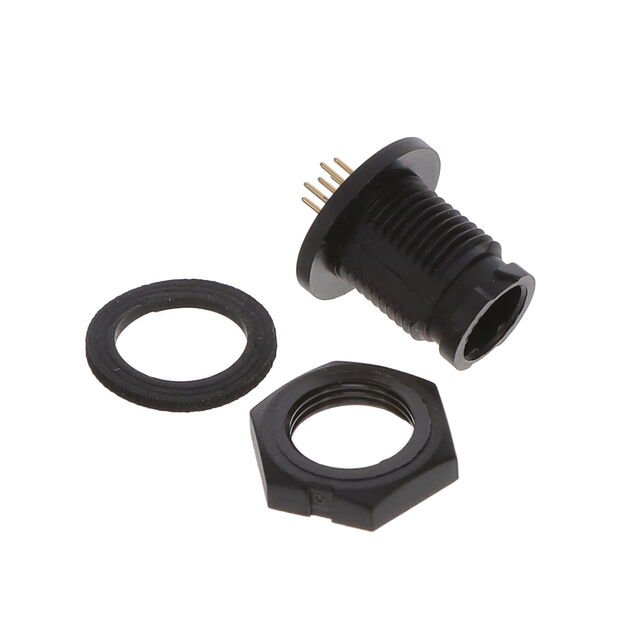

CONN RCPT MALE 7POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 7POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	W17984-7PG-P-3ES

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	600 VAC

CONN RCPT MALE 7POS GOLD SOLDER

Part	Contact Material	Connector Type	Primary Material	Ingress Protection	Color	Mounting Type	Mounting Feature	Features	Insert Material	Termination	Shielding	Voltage Rating	Contact Finish - Mating	Applications	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Current Rating (Amps)
Conxall/Switchcraft W17984-7PG-P-3ES	Copper Alloy	Male Pins, Receptacle	Plastic	IP67 - Dust Tight, Waterproof	Black	Panel Mount, Through Hole	Bulkhead - Front Side Nut	UV Resistant	Thermoplastic	Solder	Unshielded	600 VAC	Gold	Data, Industrial, Instrumentation, Medical	7	Bayonet Lock	-40 °C	80 C	A	7.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder
