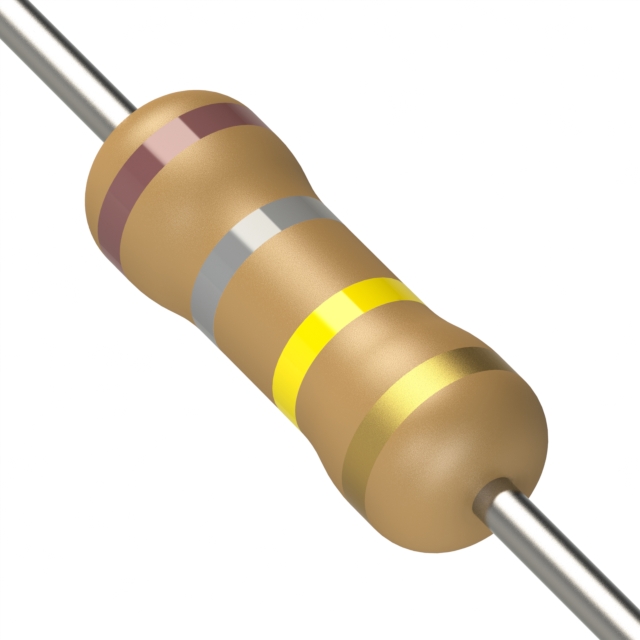

CF1/2CT52R184J
ActiveKOA Speer Electronics, Inc.
RES 180K OHM 5% 1/2W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CF1/2CT52R184J
ActiveKOA Speer Electronics, Inc.
RES 180K OHM 5% 1/2W AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CF1/2CT52R184J | CF1/2 Series |
|---|---|---|
| Composition | Carbon Film | Carbon Film |
| Number of Terminations | 2 | 2 |
| Operating Temperature [Max] | 155 °C | 155 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | Axial | Axial |
| Power (Watts) | 0.5 W | 0.5 W |
| Power (Watts) | 0.5 W | 0.5 W |
| Resistance | 180 kOhms | 1.2 - 10000 Ohms |
| Size / Dimension [diameter] | 3 mm | 3 mm |
| Size / Dimension [diameter] | 0.118 in | 0.118 in |
| Size / Dimension [x] | 0.335 " | 0.335 " |
| Size / Dimension [x] | 8.5 mm | 8.5 mm |
| Supplier Device Package | Axial | Axial |
| Temperature Coefficient [Max] | -700 ppm/°C | -700 - 350 ppm/°C |
| Temperature Coefficient [Min] | 0 ppm/°C | -1300 - 0 ppm/°C |
| Tolerance | 5 % | 5 % |
CF1/2 Series
RES 2.2K OHM 5% 1/2W AXIAL
| Part | Package / Case | Number of Terminations | Resistance | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient [Max] | Temperature Coefficient [Min] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Power (Watts) | Power (Watts) | Supplier Device Package | Composition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KOA Speer Electronics, Inc. CF1/2C222J | Axial | 2 | 2200 Ohms | 5 % | 155 °C | -55 °C | 350 ppm/°C | -450 ppm/°C | 3 mm | 0.335 " | 0.118 in | 8.5 mm | 0.5 W | 0.5 W | Axial | Carbon Film |
KOA Speer Electronics, Inc. CF1/2CT52R103J | Axial | 2 | 10000 Ohms | 5 % | 155 °C | -55 °C | 350 ppm/°C | -450 ppm/°C | 3 mm | 0.335 " | 0.118 in | 8.5 mm | 0.5 W | 0.5 W | Axial | Carbon Film |
KOA Speer Electronics, Inc. CF1/2CT52R2R7J | Axial | 2 | 2.7 Ohms | 5 % | 155 °C | -55 °C | 350 ppm/°C | -450 ppm/°C | 3 mm | 0.335 " | 0.118 in | 8.5 mm | 0.5 W | 0.5 W | Axial | Carbon Film |
KOA Speer Electronics, Inc. CF1/2CT52R131J | Axial | 2 | 5 % | 155 °C | -55 °C | 350 ppm/°C | -450 ppm/°C | 3 mm | 0.335 " | 0.118 in | 8.5 mm | 0.5 W | 0.5 W | Axial | Carbon Film | |
KOA Speer Electronics, Inc. CF1/2C473J | Axial | 2 | 47 kOhms | 5 % | 155 °C | -55 °C | 350 ppm/°C | -450 ppm/°C | 3 mm | 0.335 " | 0.118 in | 8.5 mm | 0.5 W | 0.5 W | Axial | Carbon Film |
KOA Speer Electronics, Inc. CF1/2CT52R151J | Axial | 2 | 150 Ohms | 5 % | 155 °C | -55 °C | 350 ppm/°C | -450 ppm/°C | 3 mm | 0.335 " | 0.118 in | 8.5 mm | 0.5 W | 0.5 W | Axial | Carbon Film |
KOA Speer Electronics, Inc. CF1/2CT52R201J | Axial | 2 | 200 Ohms | 5 % | 155 °C | -55 °C | 350 ppm/°C | -450 ppm/°C | 3 mm | 0.335 " | 0.118 in | 8.5 mm | 0.5 W | 0.5 W | Axial | Carbon Film |
KOA Speer Electronics, Inc. CF1/2CT52R390J | Axial | 2 | 39 Ohms | 5 % | 155 °C | -55 °C | 350 ppm/°C | -450 ppm/°C | 3 mm | 0.335 " | 0.118 in | 8.5 mm | 0.5 W | 0.5 W | Axial | Carbon Film |
KOA Speer Electronics, Inc. CF1/2CT52R241J | Axial | 2 | 240 Ohms | 5 % | 155 °C | -55 °C | 350 ppm/°C | -450 ppm/°C | 3 mm | 0.335 " | 0.118 in | 8.5 mm | 0.5 W | 0.5 W | Axial | Carbon Film |
KOA Speer Electronics, Inc. CF1/2CT52R470J | Axial | 2 | 47 Ohms | 5 % | 155 °C | -55 °C | 350 ppm/°C | -450 ppm/°C | 3 mm | 0.335 " | 0.118 in | 8.5 mm | 0.5 W | 0.5 W | Axial | Carbon Film |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.12 | |
| 10 | $ 0.10 | |||
| 25 | $ 0.07 | |||
| 50 | $ 0.06 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.02 | |||
| Tape & Reel (TR) | 4000 | $ 0.02 | ||
| 8000 | $ 0.01 | |||
| 12000 | $ 0.01 | |||
| 28000 | $ 0.01 | |||
| 100000 | $ 0.01 | |||
Description
General part information
CF1/2 Series
180 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film
