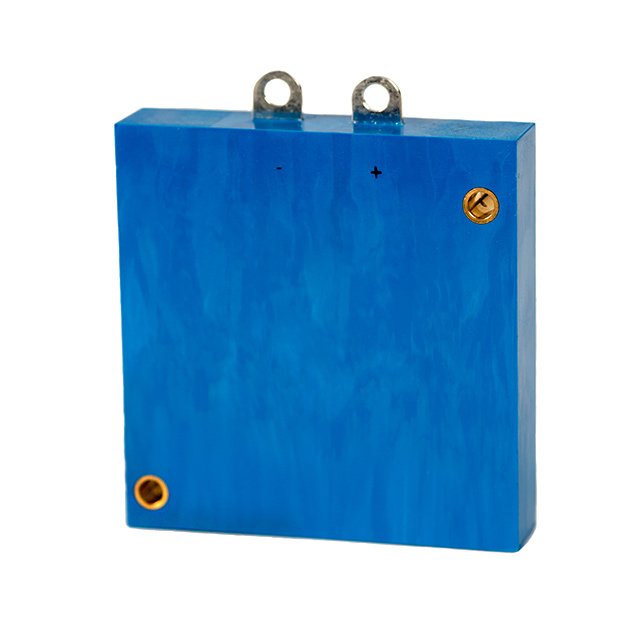

M550B607M050AG

Active

KEMET

CAP TANT POLY 600UF 50V CHAS MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M550B607M050AG

Active

KEMET

CAP TANT POLY 600UF 50V CHAS MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M550B607M050AG

Capacitance	600 µF
ESR (Equivalent Series Resistance)	30 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.445 in
Height - Seated (Max) [Max]	11.3 mm
Lead Spacing	0.453 in
Lead Spacing	11.5 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Chassis Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	M55 Module
Size / Dimension [x]	48.4 mm
Size / Dimension [x]	1.906 in
Size / Dimension [y]	1.11 in
Size / Dimension [y]	28.2 mm
Tolerance	20 %
Type	Hermetically Sealed
Voltage - Rated	50 VDC

M550B Series

...

Part	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Capacitance	Tolerance	Features	Package / Case	Voltage - Rated	Manufacturer Size Code	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Voltage - Rated [custom]
KEMET M550B108M050BS	Hermetically Sealed	1.992 "	50.6 mm	52.1 mm	2.051 in	Chassis Mount	1000 µF	20 %	General Purpose	M55 Module	50 VDC	B	105 ░C	-55 °C	2000 Hrs	13.2 mm	0.52 "	20 mOhm
KEMET M550B108M025TS	Hermetically Sealed	1.992 "	50.6 mm	52.1 mm	2.051 in	Chassis Mount	1000 µF	20 %	High Reliability	M55 Module	25 VDC	B	105 ░C	-55 °C	2000 Hrs	13.2 mm	0.52 "	30 mOhm
KEMET M550B127M100AS	Hermetically Sealed	1.11 in	28.2 mm	48.4 mm	1.906 in	Chassis Mount	120 µF	20 %	General Purpose	M55 Module	100 V	B	105 ░C	-55 °C	2000 Hrs			60 mOhm	0.445 in	11.3 mm	0.453 in	11.5 mm
KEMET M550B687M030AH	Hermetically Sealed	1.992 "	50.6 mm	52.1 mm	2.051 in	Chassis Mount	680 µF	20 %	General Purpose	M55 Module	30 V	B	105 ░C	-55 °C	2000 Hrs	13.2 mm	0.52 "	25 mOhm
KEMET M550B398M015AH	Hermetically Sealed	1.992 "	50.6 mm	52.1 mm	2.051 in	Chassis Mount	3900 µF	20 %	General Purpose	M55 Module	15 V	B	105 ░C	-55 °C	2000 Hrs	13.2 mm	0.52 "	15 mOhm
KEMET M550B607M050AG	Hermetically Sealed	1.11 in	28.2 mm	48.4 mm	1.906 in	Chassis Mount	600 µF	20 %	General Purpose	M55 Module	50 VDC	B	105 ░C	-55 °C	2000 Hrs			30 mOhm	0.445 in	11.3 mm	0.453 in	11.5 mm
KEMET M550B257M100BT	Hermetically Sealed	1.992 "	50.6 mm	52.1 mm	2.051 in	Chassis Mount	250 µF	20 %	General Purpose	M55 Module	100 V	B	105 ░C	-55 °C	2000 Hrs	13.2 mm	0.52 "	30 mOhm
KEMET M550B348M008AH	Hermetically Sealed	1.11 in	28.2 mm	48.4 mm	1.906 in	Chassis Mount	3400 µF	20 %	General Purpose	M55 Module		B	105 ░C	-55 °C	2000 Hrs			30 mOhm	0.445 in	11.3 mm	0.453 in	11.5 mm	8 V
KEMET M550B128K050TA	Hermetically Sealed	1.992 "	50.6 mm	52.1 mm	2.051 in	Chassis Mount	1.2 mF	10 %	High Reliability	M55 Module	50 VDC	B	105 ░C	-55 °C	2000 Hrs	13.2 mm	0.52 "	15 mOhm
KEMET M550B507K050AT	Hermetically Sealed	1.11 in	28.2 mm	48.4 mm	1.906 in	Chassis Mount	500 µF	10 %	General Purpose	M55 Module	50 VDC	B	105 ░C	-55 °C	2000 Hrs			40 mOhm	0.445 in	11.3 mm	0.453 in	11.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 259.46

Description

General part information

M550B Series

600 µF Hermetically Sealed Tantalum Polymer Capacitor 50 V M55 Module 30mOhm @ 100kHz
