VSC8115XYA-02-T
ActiveMicrochip Technology
CLOCK RECOVERY UNIT PB FREE
Deep-Dive with AI
Search across all available documentation for this part.
VSC8115XYA-02-T
ActiveMicrochip Technology
CLOCK RECOVERY UNIT PB FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VSC8115XYA-02-T | VSC8115 Series |
|---|---|---|
| - | - | |
| Differential - Input:Output [custom] | True | True |
| Differential - Input:Output [custom] | True | True |
| Frequency - Max [Max] | 622 Mbps | 622 Mbps |
| Main Purpose | SONET/SDH, DWDM | SONET/SDH, DWDM |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Output | LVPECL, LVDS | LVPECL, LVDS |
| Package / Case [custom] | 4.4 mm, 0.173 in | 0.173 - 4.4 mm |
| Package / Case [custom] | Exposed Pad | Exposed Pad |

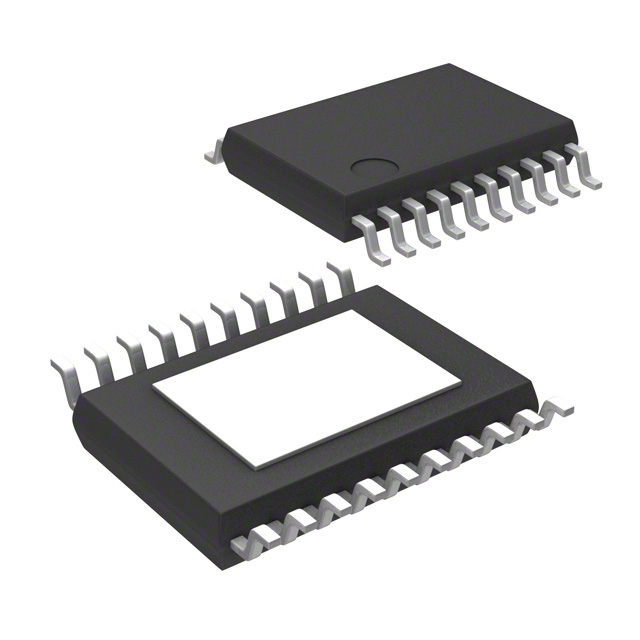

| Package / Case [custom] | 20-TSSOP | 20-TSSOP |
| PLL | False | False |
| Ratio - Input:Output [custom] | 1:2 | 1:2 |
| Supplier Device Package | 20-TSSOP | 20-TSSOP |
| Voltage - Supply [Max] | 3.465 V | 3.465 V |
| Voltage - Supply [Min] | 3.135 V | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VSC8115 Series
622 MHZ CRU / PB FREE T&R
| Part | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Mounting Type | PLL | Supplier Device Package | Output | Operating Temperature [Max] | Operating Temperature [Min] | Ratio - Input:Output [custom] | Package / Case [custom] | Package / Case [custom] | Package / Case [custom] | Frequency - Max [Max] | Main Purpose | Voltage - Supply [Max] | Voltage - Supply [Min] | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology VSC8115XYA-T | Surface Mount | 20-TSSOP | LVDS, LVPECL | 70 °C | 0 °C | 1:2 | 0.173 in, 4.4 mm | Exposed Pad | 20-TSSOP | 622 Mbps | DWDM, SONET/SDH | 3.465 V | 3.135 V | 1 | |||
Microchip Technology VSC8115XYA-05-T | Surface Mount | 20-TSSOP | LVDS, LVPECL | 85 °C | 0 °C | 1:2 | 0.173 in, 4.4 mm | Exposed Pad | 20-TSSOP | 622 Mbps | DWDM, SONET/SDH | 3.465 V | 3.135 V | 1 | |||
Microchip Technology VSC8115XYA-06-T | |||||||||||||||||
Microchip Technology VSC8115XYA-06-T | |||||||||||||||||
Microchip Technology VSC8115XYA-02-T | Surface Mount | 20-TSSOP | LVDS, LVPECL | 85 °C | -40 °C | 1:2 | 0.173 in, 4.4 mm | Exposed Pad | 20-TSSOP | 622 Mbps | DWDM, SONET/SDH | 3.465 V | 3.135 V | 1 | |||
Microchip Technology VSC8115XYA-05-T |
Description
General part information
VSC8115 Series
SONET/SDH, DWDM Clock and Data Recovery (CDR) IC 622Mbps 1 Output 20-TSSOP
