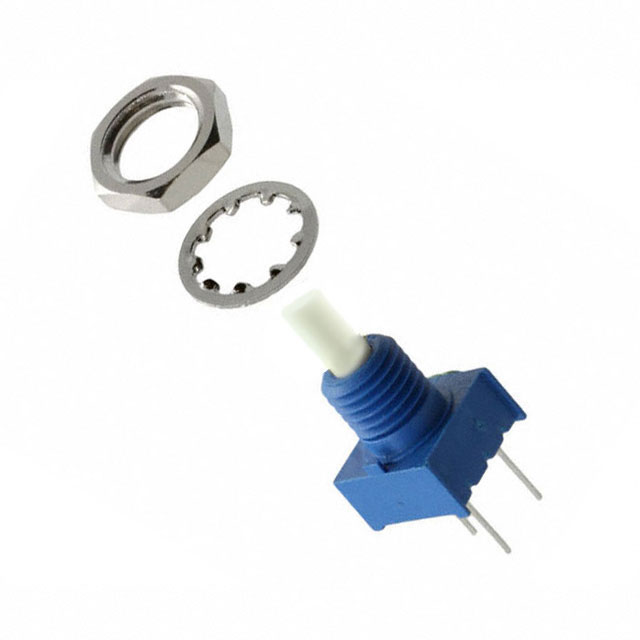

Specification	3310Y-125-203L

Actuator Diameter	3.175 mm
Actuator Length	0.22 in
Actuator Type	Flatted
Adjustment Type	Top Adjustment
Built in Switch	None
Features	Sealed
Mounting Type	Through Hole
Number of Gangs	1
Number of Turns	1 turns
Power (Watts)	250 mW
Power (Watts) Options	1/4W
Resistance	20 kOhm
Resistive Material	Conductive Plastic
Rotation	300 °
Size - Body Face Length	0.375 in
Size - Body Face Width	0.375 in
Size - Body Shape	Square
Taper	Linear
Temperature Coefficient	1000 ppm/°C
Temperature Coefficient (Highest)	1000 ppm/°C
Temperature Coefficient (Lowest)	-1000 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

3310Y Series

Part	Actuator Type	Adjustment Type	Features	Number of Gangs	Number of Turns	Resistive Material	Tolerance	Resistance	Actuator Diameter	Taper	Rotation	Size - Body Face Length	Size - Body Shape	Size - Body Face Width	Built in Switch	Temperature Coefficient (Highest)	Temperature Coefficient	Temperature Coefficient (Lowest)	Actuator Length	Mounting Type	Power (Watts)	Power (Watts) Options	Termination Style	Bushing Thread
Bourns Inc. 3310Y-125-203L	Flatted	Top Adjustment	Sealed	1	1 turns	Conductive Plastic	20 %	20 kOhm	3.175 mm	Linear	300 °	0.375 in	Square	0.375 in	None	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	0.22 in	Through Hole	250 mW	1/4W	PC Pins
Bourns Inc. 3310Y-002-104L	Slotted	Top Adjustment	Sealed	1	1 turns	Conductive Plastic	20 %	100 kOhm	3.175 mm	Linear	300 °	0.375 in	Square	0.375 in	None	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	0.5 in	Panel Mount	250 mW	1/4W	PC Pins	1/4-32
Bourns Inc. 3310Y-101-102L	Flatted	Top Adjustment	Sealed	1	1 turns	Conductive Plastic	20 %	1 kOhm	3.175 mm	Linear	300 °	0.375 in	Square	0.375 in	None	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	0.5 in	Panel Mount	250 mW	1/4W	PC Pins	1/4-32
Bourns Inc. 3310Y-001-503L	Slotted	Top Adjustment	Sealed	1	1 turns	Conductive Plastic	20 %	50 kOhm	3.175 mm	Linear	300 °	0.375 in	Square	0.375 in	None	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	0.5 in	Panel Mount	250 mW	1/4W	PC Pins	1/4-32
Bourns Inc. 3310Y-101-503L	Flatted	Top Adjustment	Sealed	1	1 turns	Conductive Plastic	20 %	50 kOhm	3.175 mm	Linear	300 °	0.375 in	Square	0.375 in	None	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	0.5 in	Panel Mount	250 mW	1/4W	PC Pins	1/4-32
Bourns Inc. 3310Y-001-104L	Slotted	Top Adjustment	Sealed	1	1 turns	Conductive Plastic	20 %	100 kOhm	3.175 mm	Linear	300 °	0.375 in	Square	0.375 in	None	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	0.5 in	Panel Mount	250 mW	1/4W	PC Pins	1/4-32
Bourns Inc. 3310Y-001-503	Slotted	Top Adjustment	Sealed	1	1 turns	Conductive Plastic	20 %	50 kOhm	3.175 mm	Linear	300 °	0.375 in	Square	0.375 in	None	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	0.5 in	Panel Mount	250 mW	1/4W	PC Pins	1/4-32
Bourns Inc. 3310Y-001-202	Slotted	Top Adjustment	Sealed	1	1 turns	Conductive Plastic	20 %	2 kOhm	3.175 mm	Linear	300 °	0.375 in	Square	0.375 in	None	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	0.5 in	Panel Mount	250 mW	1/4W	PC Pins	1/4-32
Bourns Inc. 3310Y-101-203L	Flatted	Top Adjustment	Sealed	1	1 turns	Conductive Plastic	20 %	20 kOhm	3.175 mm	Linear	300 °	0.375 in	Square	0.375 in	None	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	0.5 in	Panel Mount	250 mW	1/4W	PC Pins	1/4-32
Bourns Inc. 3310Y-011-503L	Slotted	Top Adjustment	Sealed	1	1 turns	Conductive Plastic	20 %	50 kOhm	3.175 mm	Linear	300 °	0.375 in	Square	0.375 in	None	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	0.75 in	Panel Mount	250 mW	1/4W	PC Pins	1/4-32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

3310Y-125-203L | Datasheet
