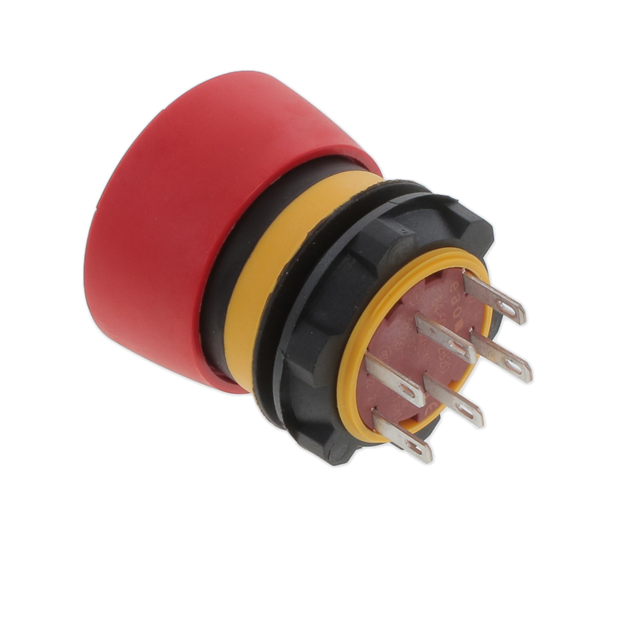

84-5041.2B20
ActiveEAO
SWITCH ESTOP TWIST RESET 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
84-5041.2B20
ActiveEAO
SWITCH ESTOP TWIST RESET 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 84-5041.2B20 | 84-5041 Series |
|---|---|---|
| Actuator Marking | - | No Marking |
| Actuator Type | - | Flush, Button, Round |
| Circuit | DPST-NC | DPST-NC, SPDT |
| Color - Actuator/Cap | - | Silver |
| Current Rating (Amps) | 5 A | 3 - 5 A |
| Electrical Life | - | 50000 Cycles |
| Features | Illuminated (Red) | Illuminated (Red) |
| Illumination Type, Color | - | LED, Yellow |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant, IP67, IP65 |
| Mechanical Life | - | 500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 65 °C | 65 - 70 °C |
| Operating Temperature [Min] | -25 °C | -30 - -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm | 19 - 22.3 mm |
| Reset Operation | Twist | Twist |
| Switch Function | On-Off | On-Off, On-On |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Cable Leads, Quick Connect, Solder, Quick Connect - 0.110" (2.8mm) |
| Termination Style | - | 0.11 in |
| Termination Style | - | 2.8 mm |
| Type | - | Illuminated, Standard |
| Voltage Rating - AC | 250 V | 240 - 250 V |
| Voltage Rating - DC | 250 V | 240 - 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.23 | |
| 5 | $ 51.19 | |||
| 10 | $ 47.15 | |||
| 25 | $ 43.78 | |||
| 50 | $ 40.42 | |||
| 100 | $ 38.39 | |||
84-5041 Series
SWITCH ESTOP TWIST RESET 5A 250V
| Part | Circuit | Termination Style | Reset Operation | Voltage Rating - AC | Features | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Switch Function | Ingress Protection | Current Rating (Amps) | Voltage Rating - DC | Mounting Type | Color - Actuator/Cap | Illumination Type, Color | Mechanical Life | Electrical Life | Actuator Type | Type | Actuator Marking | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 84-5041.2B40 | DPST-NC | Cable Leads | Twist | 250 V | Illuminated (Red) | 65 °C | -25 °C | 22.3 mm | On-Off | IP65 - Dust Tight, Water Resistant | 5 A | 250 V | Panel Mount, Front | |||||||||
SPDT | Quick Connect, Solder | 240 V | 70 °C | -30 ░C | 19 mm | On-On | IP65, IP67 | 3 A | 240 V | Panel Mount, Front | Silver | LED, Yellow | 500000 Cycles | 50000 Cycles | Button, Flush, Round | Illuminated, Standard | No Marking | 0.11 in | 2.8 mm | |||
EAO 84-5041.2B20 | DPST-NC | Quick Connect - 0.110" (2.8mm) | Twist | 250 V | Illuminated (Red) | 65 °C | -25 °C | 22.3 mm | On-Off | IP65 - Dust Tight, Water Resistant | 5 A | 250 V | Panel Mount, Front |
Description
General part information
84-5041 Series
SWITCH ESTOP TWIST RESET 5A 250V
Documents
Technical documentation and resources
