A17775-18

Obsolete

Laird Technologies - Thermal Materials

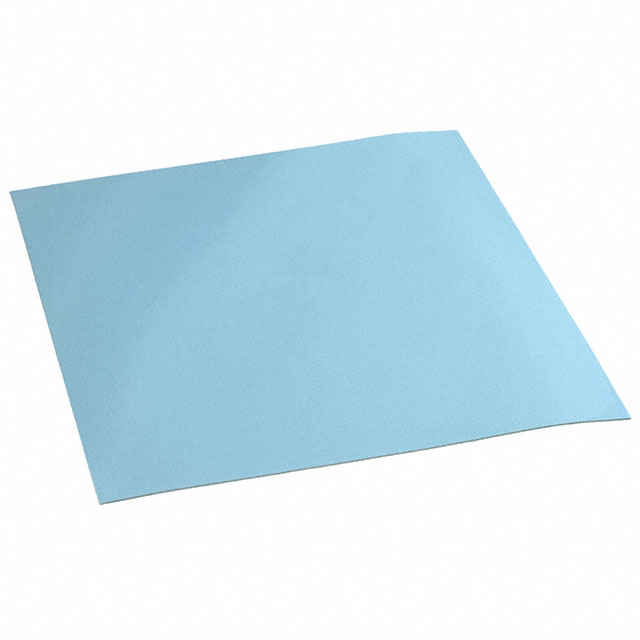

THERM PAD 228.6MMX228.6MM BLUE

Search across all available documentation for this part.

Obsolete

Laird Technologies - Thermal Materials

THERM PAD 228.6MMX228.6MM BLUE

Technical Specifications

Parameters and characteristics for this part

Part	Thermal Conductivity	Type	Shape	Shelf Life	Color	Material	Thickness	Thickness	Outline [x]	Outline [y]	Adhesive	Thickness [custom]
Laird Technologies - Thermal Materials A17775-07	4 W/m-K	Gap Filler Pad Sheet	Square	24 Months	Blue	Ceramic Filled Silicone	0.07 in	1.778 mm	228.6 mm	228.6 mm	Tacky - One Side
Laird Technologies - Thermal Materials A17775-18	4 W/m-K	Gap Filler Pad Sheet	Square	24 Months	Blue	Ceramic Filled Silicone	0.18 in	4.57 mm	228.6 mm	228.6 mm	Tacky - One Side
Laird Technologies - Thermal Materials A17775-10	4 W/m-K	Gap Filler Pad Sheet	Square	24 Months	Blue	Ceramic Filled Silicone	0.1 in	2.54 mm	228.6 mm	228.6 mm	Tacky - One Side
Laird Technologies - Thermal Materials A17775-20	4 W/m-K	Gap Filler Pad Sheet	Square	24 Months	Blue	Ceramic Filled Silicone	0.2 in	200 mils	228.6 mm	228.6 mm	Tacky - One Side
Laird Technologies - Thermal Materials A17775-19	4 W/m-K	Gap Filler Pad Sheet	Square	24 Months	Blue	Ceramic Filled Silicone		4.83 mm	228.6 mm	228.6 mm	Tacky - One Side	0.19 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 217.71

General part information

Thermal Pad Blue 228.60mm x 228.60mm Square Tacky - One Side
